MP310
  1.  Industrial 7+3G L2 Managed M12 PoE Switch

The managed MP310-HV switch is specially designed for fast and reliable infotainment and IP-surveillance networks on road and railway public transport. The switch provides 7 FE ports with intelligent PoE/PoE+ functionality and 3 Gigabit ports, one of which is PoE/PoE+ port and 2 Gigabit uplink ports with link bypass function ensuring network connectivity even in case of device/power fault. IP31 industrial hardware design with M12 rugged connectors eliminates the problems of vibration, shock, and temperature extremes. The switch is also equipped with M12 USB port for field configuration and trouble shooting.
Related Downloads Inquiry cart

High Throughput Ethernet Switching
・10 Ethernet ports, including 7 Fast Ethernet ports and 3 Gigabit Ethernet ports

・8-port PoE, including 7 Fast Ethernet ports and 1 Gigabit Ethernet port
・2 Gigabit Ethernet port with link bypass function ・8K MAC address table
・Stores and forwards with non-blocking Switch Fabric

Management Features
・Various configuration paths, including WebGUI, CLI, Telnet, SNMP v1/v2c/v3 and RMON
・IEEE 1588v2 PTP time management
・LLDP topology control
・Modbus/TCP, Ethernet/IP for factory automation
・USB for easy field configuration and firmware update
・Software utility interface for LAN devices management
・NMS system for individual component monitoring

ITU-T G.8032 v1/v2 ERPS Ring Redundancy
・An ITU standard Ring redundancy Protocol
・Provide sub-50ms protection and recovery switching for Ethernet traffic
・Interoperate with 3rd party industrial switch and still remain fast recovery time
・Interoperate with commercial switch instead of STP/RSTP
・Efficient network interconnection and topology with ERPS Chain, multiple chains

Enhanced Cyber Security for Critical Application
・802.1X/RADIUS port-based access control
・Port MAC secure learning
・Private VLAN/IP Security/Port Security
・HTTPs/SSH/ Management IP secure access

Extreme PoE Capability
・8-port IEEE 802.3af/at compliant PoE, up to 30W/port
・Up to 100W system power budget at 70°C operating temperature
・Complete PoE management including per-port Power Budget Control, PoE Scheduling and PoE Status

Rugged Design for Surveillance in Rail, Rolling Stock applications
・EN50155/IEC61373, EN45545 railway certification
・Railway 110VDC(77~137.5V) on-board power design
・Outstanding mechanical design with good heat dispassion and lightweight
・Rugged M12 connectors for harsh environments
・Wide operating temperature range from -40 ~ 70°C

Specifications
 Technology
Standard IEEE 802.3 af/at Power Over Ethernet
IEEE 802.3u 100Base-TX Fast Ethernet
IEEE 802.3ab 1000Base-T Gigabit Ethernet copper
IEEE 802.3x Flow Control and back-pressure
IEEE 802.1AB Link Layer Discovery Protocol(LLDP)
IEEE 802.1p Class of Service (CoS)
IEEE 802.1Q VLAN and GVRP
ITU-T G.8032 Ethernet ring protection switching(ERPS)
IEEE 802.1Q Double Tag VLAN (QinQ)
IEEE 802.1D-2004 Rapid Spanning Tree Protocol(RSTP)
IEEE 802.1S Multiple Spanning Tree Protocol(MSTP)
IEEE 802.3ad Link Aggregation Control Prptocol(LACP)
IEEE 802.1xPort based Network Access Protocol
IEEE 1588Precision Time Protocol v2
 Performance
Switch Technology Store and Forward Technology with Non-Blocking Switch Fabric
Number of MAC Address 8K
Packet Buffer Memory  1M Bits
Transfer performance 100Base-TX: 148,800pps, 1000Base-TX: 1,488,100pps
VLAN 256VLANs
VLAN ID 1~4094
Class of Service 4 Priority Queues per Port
Watchdog Hardware-based 10 seconds timer
 Interface
Ethernet Port

7 x 10/100BaseTX, M12 4 pin D-Code Female, Auto Negotiation, IEEE 802.3af/at PoE

3 x 100/1000Base-T, M12 8 pin A/X-Code Female, Auto Negotiation, 1 port (Port 8) IEEE 802.3af/at PoE, 2 ports (Port 9/10) link bypass

Pin Definition:

4 pin D-Code Female: #1 (TX+/PoE V+), #2 (RX+/PoE V-), #3 (TX-/PoE V+),  #4 (RX-/PoE V-)

8 pin X-Code Female: #1 (D1+/PoE V+), #2 (D1-/PoE V+), #3 (D2+/PoE V-), #4 (D2-/PoE V-),

  (MP310-HV/MV-X)          #5 (D4+), #6 (D4-), #7 (D3-), #8 (D3+)

8 pin A-Code Female: #1 (D3-), #2 (D4+), #3 (D4-), #4 (D1-/PoE V+),

  (MP310-HV/MV-A)          #5 (D2+/PoE V-), #6 (D1+/PoE V+), #7 (D3+), #8 (D2-/PoE V-)

Cable:

100 Base-TX: 2-pair Cat.5E/Cat.6 FTP/STP cable, EIA/TIA 568B 100-Ohm, 100Meters

1000 Base-T: 4-pair Cat.5E/Cat.6 FTP/STP cable, EIA/TIA 568B 100Ohm, 100Meters

*Recommend to use FTP/STP cable for the railway on-board applications
System LED 1 x PWR: Green On
1 x SYS: Ready:Green On, Fireware Updating:Green Blinking
1 x Ring: Off: Ring disabled, Green On: Ring normal (Not RPL Owner), Green Blinking: Ring normal
      (RPL Owner), Amber On: Ring abnormal, Amber Blinking:Ring port fail
1 x ALM:Red On
10 x Port: Link (Green On), Activity (Green Blinking)
8 x PoE : IEEE802.3af Powering (Green On), IEEE802.3af Detecting (Green Blinking), IEEE802.3at Powering (Blue On), IEEE802.3at Detecting (Blue Blinking)
Console
USB		 1 x M12 8 pin A-Code Female
RS232 Console Baud Rate: 115200.n.8.1
Pin Definition:
#1  (TxD), #2 (RxD), #3 (Signal Ground), #5 (USB DATA+), #6 (USB DATA-), #7 (USB 5V), #8 (USB GND)
Power Input M12 4 pin A-Code Male with polarity reverse protection
Pin Definition:
​#1 (V+), #2 (V+), #3 (V-), #4 (V-)
 Power Requirement
Input Voltage

MP310-HV: 110VDC (77~137.5VDC)

MP310-MV: 54VDC (46~57VDC)
Reverse Polarity Protect Yes
Input Current

MP310-HV:1.10A@110V

MP310-MV:TBC
Power Consumption

MP310-HV:

Max 15.4W@110VDC full traffic without PD loading, suggest to reserve 15% tolerance

MP310-MV: TBC
 PoE
Power forwarding mode Alternative A
PoE Power Budget System: Max.100W@70°C
Per Port: Max. 30W
PoE Mode IEEE 802.3 af/at
Management System/Port Power Budget Contro, PoE Scheduling, PD Alive Check, PoE Status
 Software
Management  Interface CGI WebGUI, Command Line Interface (CLI), Telnet, SNMP
Time Management NTP,IEEE 1588 Precision Time Protocol v1/v2
Network Management IPv4/IPv6, SNMP v1/v2/v3/Trap, MIBs, RMON, LLDP, DHCP
​server/client/Option 82, TFTP, System Log, SMTP
Traffic Management Flow Control, Port Trunk/802.3ad LACP, VLAN, Private VLAN, GVRP, GMRP, QinQ, Class of Service, Traffic Prioritize, IGMP Snooping v1/v2/v3, Rate Control, Port Mirror
Security IEEE 802.1X/RADIUS, Port MAC Secure Learning, Management IP, Management VLAN, SSH, SSL
Redundancy Rapid Spanning Tree Protocol (RSTP)/Multiple Spanning Tree Protocol (MSTP)
ITU-T G.8032 v1/v2 Ethernet Ring Protection Switching (ERPS)
 Mechanical
Installation Wall Mount
Enclosure Material Steel Metal with Aluminum
Dimension 198(W) x 158(H) x 105(D) mm / without Mounting Clip
262(W) x 158(H) x 107(D) mm / with Mounting Clip
Ingress Protection IP31
Weight 3KG (device) / 3.5KG (full package)
Package 287(W) x 220(L) x 171(H) mm (package)
12pcs / carton 606(W) x 473(L) x 557(H) mm (1.5KG)
 Environmental
Operating Temperature & Humidity -40°C~70°C , 0%~95% Non-Condensing
Storage Temperature -40°C~80°C
Hi-Pot Insulation AC1.5KV
MTBF >609,000 hours
Warranty 5 years
 Standard
Safety IEC60950-1 Compliance
EMC EN61000-6-2/4
EMI CISPR 22, FCC part 15B Class A
EMS EN61000-4-2 ESD: 8KV(Air),6KV(Contact)
EN61000-4-3 RS: 20V/m(80M~1GHz), 10V/m(1.4G~2.1GHz), 5V/m (2.1G~2.5GHz)
EN61000-4-4 EFT: 2KV (Power, Signal Port, GND)
EN61000-4-5 Surge: Power: 2KV/1KV(Line to Ground/Line to Line), Signal Port: 2KV(Line to Ground)
EN61000-4-6 CS: 10Vrms(Power, Signal Port)
EN61000-4-8 Magnetic Field: 30A/m continues /300A for 1~3s
Railway EN50155
includes EN50121-3-2 EMC/ IEC61373 Vibration and Shock for railway
EN45545

​
Datasheet... QIG...
Ordering Information
 Model Name
MP310-HV-A Industrial 7+3G L2 Managed M12 PoE Switch, 7xD-code FE+3xA-code GbE, 110VDC
MP310-HV-X Industrial 7+3G L2 Managed M12 PoE Switch, 7xD-code FE+3xXA-code GbE, 110VDC
MP310-MV-A Industrial 7+3G L2 Managed M12 PoE Switch, 7xD-code FE+3xA-code GbE, 54VDC
MP310-MV-X Industrial 7+3G L2 Managed M12 PoE Switch, 7xD-code FE+3xX-code GbE, 54VDC
Package List
1 x Product Unit
1 x Wall Mount Kit (2 x Wall mount plates)
1 x Quick Installation Guide

Optional Accessory
 Item
USB-1-4 M12 A-code 4Gb USB disk for device configuration, firmware update
CBL-F9MM12A-1M
 Console Cable DB9 Male to M12-A-code Male, 1 Meter
MC-1-4 Field assembled M12 connector, 4-pin, A-code
  • MP310 is installed on each cabinet of the train for connecting PoE surveillance cameras and information panel.
  • MP614 is installed on the cab's room for connecting the dashboard, NVR and control components, and provided L3 routing.
  • MP614 + MP310 in each cabinet connect as an ERPS ring to provide fast redundancy.
  • MP614 + MP310 support bypass technology to keep data transmitting, in case there is a device powered down or fail.
  • WR312G-M12 supports high-speed LTE transmission, which transmits information on the train to the Control Room via LTE.

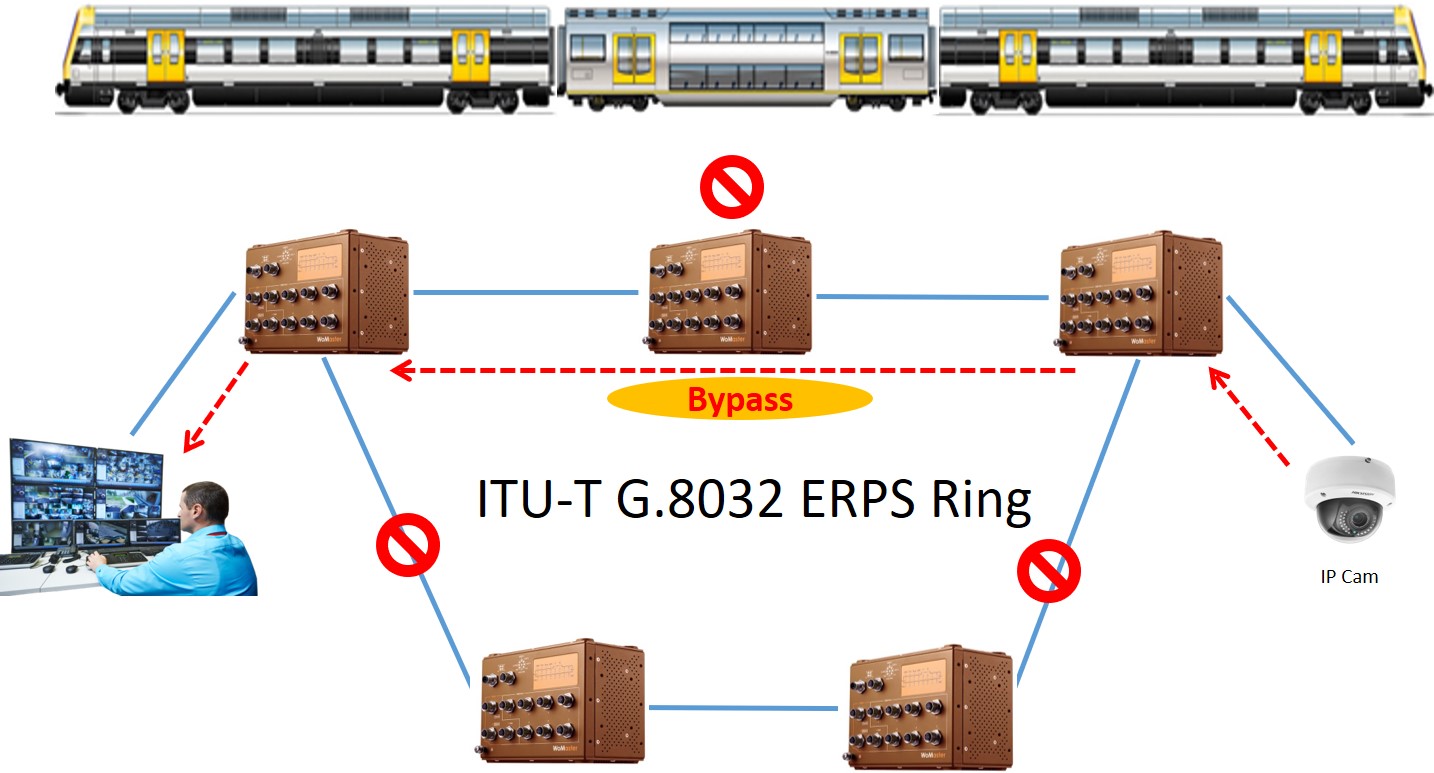

► Bypass technology for Surveillance on Trains

Fiber Bypass Function to guarantee continuous network



Fiber Bypass with latest ERPS v2 Ring Technology guarantees fast recovery network
