  1.  Industrial 10G Managed M12 PoE switch

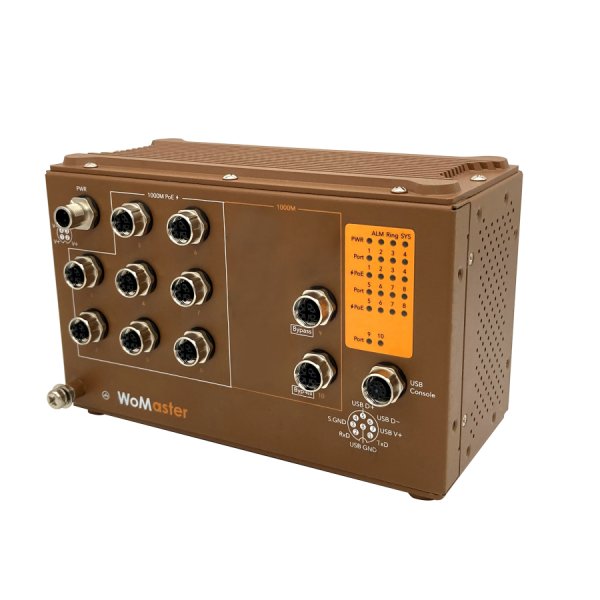

MP610 series is the leading edge M12 full Gigabit routing PoE switch designed for Layer 3 controlling network on rail public transport. MP610 is equipped with 10 rugged Gigabit M12 ports, 8 of which supply intelligent PoE/PoE+ and 2 of which support link bypass function for sustainable connectivity even in case of device/power fault. The advanced Layer 3 routing protocols such as IP/VLAN routing, RIP, OSPF, VRRP are fully compatible with your backbone network. Full 14 Gigabit ports bring forward an ultra speed connectivity without any bottleneck. The comprehensive Cyber Security design safeguards the network from outside intrusion.
Inquiry cart

Full Giga Switching and Ultra High Throughput

・ 10-port Full-Giga Ethernet with 8-port PoE and 2-port link bypass function

・ 16K MAC address table

・ 1.5MBytes packet buffer memory for H.264 burst

・ 9K jumbo frame

・Store and forward with non-blocking switch fabric


ITU-T G.8032 v1/v2 ERPS Ring Redundancy

・ An ITU standard Ring redundancy Protocol

・ Provide sub-50ms protection and recovery switching for Ethernet traffic

・ Interoperate with 3rd party industrial switch and still remain fast recovery time

・ Interoperate with commercial switch instead of STP/RSTP

・ Efficient network interconnection and topology with ERPS Chain, multiple chains


Management Features

・Various configuration path including WebGUI, CLI, SNMP and RMON

・Support IEEE 1588v1/v2 PTP time management

・LLDP topology control

・Modbus/TCP, Ethernet/IP for factory automation

・Support USB for field side easy configuration and firmware update

・Software utility interface for LAN devices management

・NetMaster- NMS system for individual component    monitoring in network management framework


IEC62443-4-2 Cyber Security Compliance

・L2-L7 Access Control List (ACL), parsing up to 128bytes/packet

・DHCP Snooping, IP Source Guard, Dynamic ARP Inspection

・802.1Q VLAN, Private VLAN, Advanced Port Security

・Multi-Level user passwords

・HTTPS/SSH/SFTP, 256-bit AES encryption

・802.1X MAB for non-802.1X compliant end devices

・RADIUS/TACACS+ centralized password authentication


Extreme PoE Capability
・Provides 8-port IEEE 802.3af/at compliance PoE, up to 30W per port
・Up to 100W system power budget at 70°C operating temperature
・Complete PoE management including per-port Power Budget Control, PoE Scheduling and PoE Status
・Rugged M12 connectors for harsh environment


Rugged Design for Surveillance in Rail, Rolling Stock application
・EN50155/IEC61373 railway certification compliance
・Outstanding mechanical design: good heat dispassion and lightweight: 100W Power feeding even in 70°C
・Wide range operating temperature from -40 ~ 70°C
・CE marking
・Emission: CISPR 22/ FCC part 15B class A


Specifications
 Technology
Standard IEEE 802.3 af/at Power Over Ethernet
IEEE 802.3u 100Base-TX Fast Ethernet
IEEE 802.3ab 1000Base-T Gigabit Ethernet copper
IEEE 802.3x Flow Control and back-pressure
IEEE 802.1AB Link Layer Discovery Protocol(LLDP)
IEEE 802.1p Class of Service (CoS)
IEEE 802.1Q VLAN and GVRP
ITU-T G.8032 Ethernet ring protection switching(ERPS)
IEEE 802.1Q Double Tag VLAN (QinQ)
IEEE 802.1D-2004 Rapid Spanning Tree Protocol(RSTP)
IEEE 802.1Q-2005 Multiple Spanning Tree Protocol(MSTP)
IEEE 802.3ad Link Aggregation Control Prptocol(LACP)
IEEE 802.1x Port based Network Access Protocol
IEEE 1588 Precision Time Protocol v1/v2
 Performance
Switch Technology Store and Forward Technology with Non-Blocking Switch Fabric
Number of MAC Address 16K
Packet Buffer Memory  1.5M Bytes
Jumbo Frame 9216 Bytes
Transfer performance 100Base-TX: 148,800pps, 1000Base-TX: 1,488,100pps
VLAN 256VLANs
VLAN ID 1~4094
Class of Service 8 Priority Queues per Port
Watchdog Hardware-based 10 seconds timer
 Interface
Ethernet Port 10 x 100/1000Base-T, M12 8 Pin A/X-Code Female, Auto Negotiation, 8 Ports (Port 1~8) IEEE802.3af/at PoE, 2 ports (Port 13/14) link bypass
Pin Definition:
8 pin X-Code Female:#1 (D1+/PoE V+), #2 (D1-/PoE V+), #3 (D2+/PoE V-),
                                   #4 (D2-/PoE V-),   #5 (D4+), #6 (D4-), #7 (D3-), #8 (D3+)
8 pin A-Code Female:#1 (D3-), #2 (D4+), #3 (D4-), #4 (D1-/PoE V+), #5(D2+/PoE V-),
                                   #6 (D1+/PoE V+), #7 (D3+), #8 (D2-/PoE V-)
Cable:
1000 Base-T: 4-pair Cat.5E / Cat.6 FTP/STP cable, EIA/TIA 568B 100-Ohm, 100Meters
*Recommended use FTP/STP cable for the railway on-board application
System LED 1 x PWR: Green On
1 x SYS: Ready:Green On, Fireware Updating:Green Blinking
1 x Ring: Off: Ring disabled, Green On: Ring normal (Not RPL Owner), Green Blinking: Ring normal (RPL Owner), Amber On: Ring abnormal, Amber Blinking:Ring port fail
1 x ALM:Red On
14 x Port: Link (Green On), Activity (Green Blinking)
8 x PoE : Amber On
Console
USB		 1 x M12 8 pin A-Code Female
RS232 Console Baud Rate: 115200.n.8.1
Pin Definition:
#1  (TxD), #2 (RxD), #3 (Signal Ground), #5 (USB DATA+), #6 (USB DATA-), #7 (USB 5V), #8 (USB GND)
Power Input M12 4 pin A-Code Male with polarity reverse protection
Pin Definition:
#1 (V-), #2 (V-), #3 (V+), #4 (V+)
 Power Requirement
Operating Voltage HV: 110VDC (77~137.5VDC)
MV: 54VDC (46~57VDC)
WV: 24/48/110VDC(16.8~137.5VDC)
Reverse Polarity Protect Yes
Input Current 1.10A@110V
Power Consumption Max 14.3W@110VDC full traffic without PD loading, suggest to reserving 15% tolerance
 PoE
Power forwarding mode Alternative A
PoE Power Budget System: Max.100W@70°C
Per Port: Max. 30W
PoE Mode IEEE 802.3 af/at
Management System/Port Power Budget Control, PoE Scheduling, PD Alive Check, PoE Status
 Software
Management  Interface CGI WebGUI, Command Line Interface (CLI), Telnet, SNMP
Time Management NTP,IEEE 1588 Precision Time Protocol v1/v2
Network Management IPv4/IPv6, SNMP v1/v2/v3/Trap, MIBs, RMON, LLDP, DHCP
server/client/Option 82, TFTP, System Log, SMTP
Traffic Management Flow Control, Port Trunk/802.3ad LACP, VLAN, Private VLAN, GVRP, GMRP, QinQ, QoS, IGMP Snooping v1/v2/v3, Rate Control, Storm Control, Port Mirror
Security IEEE 802.1X/RADIUS, Private VLAN, ACL(MAC/IP filter), HTTPs/SSH secure login
Redundancy Rapid Spanning Tree Protocol (RSTP)/Multiple Spanning Tree Protocol (MSTP)
ITU-T G.8032 v1/v2 Ethernet Ring Protection Switching (ERPS)
 Mechanical
Installation Wall Mount
Enclosure Material Steel Metal with Aluminum
Dimension 205(W) x 133(H) x 95(D) mm / without Wall Mount Plate
Ingress Protection IP31
Weight 3KG (device) / 3.5KG (full package)
Package 290(W) x 220(L) x 150(H) mm (package)
6pcs / carton 410(W) x 550(L) x 490(H) mm (1.5KG)
 Environmental
Operating Temperature & Humidity -40°C~70°C , 0%~95% Non-Condensing
Storage Temperature -40°C~85°C
Hi-Pot Insulation AC 1KV
MTBF >485,000 hours
Warranty 5 years
 Standard
Safety IEC60950-1 Compliance
EMC EN61000-6-2/EN61000-6-4
EMI CISPR 22, FCC part 15B Class A
EMS EN61000-4-2 ESD: 8KV(Air),6KV(Contact)
EN61000-4-3 RS: 20V/m(80M~1GHz), 10V/m(1.4G~2.1GHz), 5V/m (2.1G~2.5GHz)
EN61000-4-4 EFT: 2KV (Power, Signal Port, GND)
EN61000-4-5 Surge: Power: 2KV/1KV(Line to Ground/Line to Line), Signal Port: 2KV(Line to Ground)
EN61000-4-6 CS: 10Vrms(Power, Signal Port)
EN61000-4-8 Magnetic Field: 30A/m continues /300A for 1~3s
Railway EN50155
includes EN50121-3-2 EMC/ IEC61373 Vibration and Shock for railway
Ordering Information
 Model Name
MP610-HV-X Industrial 10-Port Giga Layer 3 M12 X-code PoE Switch, 110V
MP610-MV-X Industrial 10-Port Giga Layer 3 M12 X-code PoE Switch, 54V
MP610-LV-X Industrial 10-Port Giga Layer 3 M12 X-code PoE Switch, 24V
MP610-WV-X Industrial 10-Port Giga Layer 3 M12 X-code PoE Switch, 24-110V
Package List
1 x Product Unit
1 x Wall Mount Kit (2 x Wall mount plates)
1 x Quick Installation Guide

Optional Accessory
 Item
USB-1-4 M12 A-code 4Gb USB disk for device configuration, firmware update
CBL-F9MM12A-1M
 Console Cable DB9 Male to M12-A-code Male, 1 Meter
MC-1-4 Field assembled M12 connector, 4-pin, A-code
