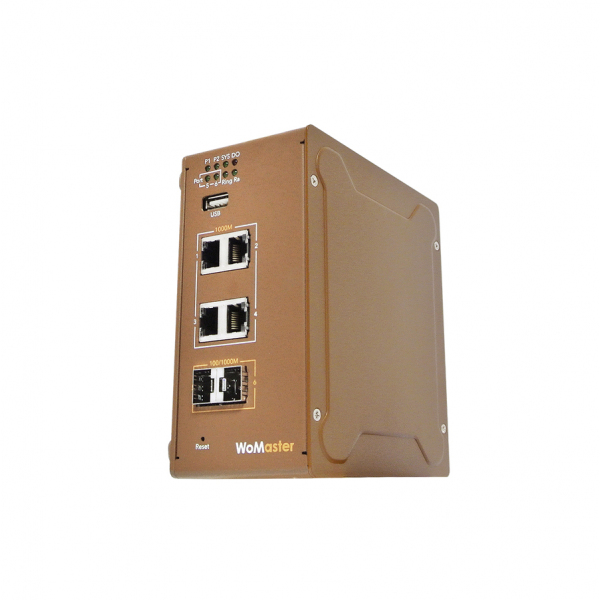

DS406
  1.  Gigabit Fiber Secured Routing Managed Switch

DS406 is a managed fiber switch with enhanced routing functionality in a robust design. It offers static routing, IPSec VPN, DMZ, and a powerful firewall in order to segregate networks and protect mission-critical data. With support for Network Address Translation (NAT) and port-forwarding, it isolates the threats from the Internet. The support of the latest ERPS v2 is fully compatible with 3rd party devices for flexible network redundancy. The USB port for the configuration file can help mass installation and site support.
Related Downloads Inquiry cart
High Throughput Ethernet Switching
・4 Gigabit Ethernet port and 2 SFP slots
・8K MAC address table
・Stores and Forwards with non-blocking Switch Fabric

Management Features
・Various configuration paths, including WebGUI, CLI, Telnet, SNMP V1/V2c/V3/trap
・LLDP topology control
・Support VLAN, IGMP snooping, QoS, rate control, port mirror
・NetMaster - NMS system for individual node monitoring
・ViewMaster - Remote configuration software utility for distributed management

Enhanced Cyber Security for Critical Application
・Firewall for traffic classification
・DMZ, port forwarding, NAT for LAN protection
・Open VPN, Ipsec, L2TP for secure connection (not available for EurAsEC countries)
・Port Security
・HTTPs/SSH secure login, TACACS+

ITU-T G.8032 v1/v2 ERPS Ring Redundancy
・An ITU standard Ring redundancy Protocol
・Provide sub-50ms protection and recovery switching for Ethernet traffic
・Interoperate with 3rd party industrial switch and still remain fast recovery time
・Interoperate with commercial switch instead of STP/RSTP
・Efficient network interconnection and topology with ERPS Chain, multiple chain

Cloud Management Service
・Support Amazon AWS & Microsoft Azure cloud service
・Support proprietary ThingsMaster cloud service
・Interactive monitoring dashboard and map shows the status, signal strength, location etc.

Rugged Design for IP Surveillance
・Robust design protects from mechanical deformation
・Wide operating temperature and humidity range -40~70℃,  95% humidity
・Wide operating voltage range 12~48VDC
・IEC 61000-6-2/4 Heavy Industrial Environment
・Railway EMC: EN50121-4 compliance
・CE Marking
・Emission: FCC part 15 B Class A


Specifications
 Technology
Standard IEEE 802.3 10Base-T Ethernet
IEEE 802.3u 100Base-TX Fast Ethernet
IEEE 802.3ab 1000Base-T Gigabit Ethernet copper
IEEE 802.3u 100Base-FX Fast Ethernet Fiber
IEEE 802.3x Flow Control and back-pressure
IEEE 802.3ab 1000Base-T Gigabit Ethernet copper
IEEE 802.1AB Link Layer Discovery Protocol(LLDP)
IEEE 802.1p Class of Service (CoS)
IEEE 802.1Q VLAN
ITU-T G.8032 Ethernet ring protection switching(ERPS)
IEEE 802.1D-2004 Rapid Spanning Tree Protocol(RSTP)
IEEE 1588Precision Time Protocol v1/v2
 Interface
Ethernet Port 4 x 10/100/1000BaseT RJ-45, Auto-Negotiation
2 x 100/1000M SFP
System LED 2 x Power: Green On
1 x SYS: Ready: (Green On), Fireware Updating: (Green Blinking)
1 x DO: Red On
2 x Fiber:  Link (Green On), Activity (Green Blinking)
1 x Ring: Off: Ring disabled, Green On: Ring normal (Not RPL Owner),Green Blinking: Ring normal (RPL Owner)
1 x Ra: Green On: Ring abnormal, Green Blinking: Ring port fail
Ethernet Port LED Link (Green On), Activity (Green Blinking)
Rsest System Reset(2-6 Seconds) / Default Settings Reset (over 7 Seconds)
USB 1 x USB for Configuration/Firmware Update
Power Input, Digital Output 6-Pin Removable Terminal Block Connector
   4 Pin for Redundant Power
   2 Pin for DO( Relay Alarm)
DO: Dry Relay Output with 0.5A /24V DC
 Power Requirement
Input Voltage 24VDC(12~48VDC)
Reverse Polarity Protect Yes
Input Current 0.3A@24V
Power Consumption Max 7.2W@24VDC full loading, suggest to reserve 15% tolerance
 Software
Management  Interface CGI WebGUI, Command Line Interface (CLI), Telnet, SNMP
Time Management NTP, *IEEE 1588 Precision Time Protocol v1/v2
Network Management IPv4, SNMP v1/v2/v3/Trap, MIBs,  LLDP, DHCP server/client, TFTP, System Log, SMTP
Traffic Management Flow Control, VLAN, Class of Service, QOS, Rate Control, Port Mirror
Security Management IP, SSH, SSL
Redundancy Rapid Spanning Tree Protocol (RSTP)
ITU-T G.8032 v1/v2 Ethernet Ring Protection Switching (ERPS)
 Mechanical
Installation DIN Rail
Enclosure Material Steel Metal with Aluminum
Dimension 67.9(W) x 149(H) x 125(D) mm / without DIN Rail Clip
Ingress Protection IP30
Weight Around 765g without package
 Environmental
Operating Temperature & Humidity -40°C~70°C , 5%~95% Non-Condensing
Storage Temperature -40°C~85°C
MTBF >200,000 hours
Warranty 5 years
 Approval
Safety IEC60950-1 Compliance
EMC EN61000-6-2/EN61000-6-4
EMI CISPR 22, FCC part 15B Class A
EMS EN61000-4-2 ESD, EN61000-4-3 RS, EN61000-4-4 EFT, EN61000-4-5 , EN61000-4-6 CS, EN61000-4-8 Magnetic Field

​
Datasheet... QIG...
Ordering Information
 Model Name
DS406 Industrial 4G+2GFManaged Ethernet Switch
Package List
1 x Product Unit
1 x 6-pin Removable Terminal Connector
1 x Attached Din Clip
1 x Quick Installation Guide

Optional Accessory
 Item
SFPGEM05 SFP, 1000Mbps, LC, multi, 550M, 0~70°C
SFPGEM05T
 SFP, 1000Mbps, LC, multi, 550M, -40~85°C
SFPGEM05D
 SFP, 1000Mbps, LC, multi, DDM, 550M, 0~70°C
SFPGEM05DT
 SFP, 1000Mbps, LC, multi, DDM, 550M, -40~85°C
SFPGEM2
 SFP, 1000Mbps, LC, multi, 2KM, 0~70°C
SFPGEM2T
 SFP, 1000Mbps, LC, multi, 2KM, -40~85°C
SFPGEM2D
 SFP, 1000Mbps, LC, multi, DDM, 2KM, 0~70°C
SFPGEM2DT
 SFP, 1000Mbps, LC, multi, DDM, 2KM, -40~85°C
SFPGES10
 SFP, 1000Mbps, LC, single, 10KM, 0~70°C
SFPGES10T
 SFP, 1000Mbps, LC, single, 10KM, -40~85°C
SFPGES10D
 SFP, 1000Mbps, LC, single, DDM, 10KM, 0~70°C
SFPGES10DT
 SFP, 1000Mbps, LC, single, DDM, 10KM, -40~85°C
SFPGES30 SFP, 1000Mbps, LC, single, 30KM, 0~70°C
SFPGES30T SFP, 1000Mbps, LC, single, 30KM, -40~85°C
SFPGES30D SFP, 1000Mbps, LC, single, DDM, 30KM, 0~70°C
SFPGES30DT
 SFP, 1000Mbps, LC, single, DDM, 30KM, -40~85°C
SFPGES40 SFP, 1000Mbps, LC, single, 40KM,  0~70°C
SFPGES40T SFP, 1000Mbps, LC, single, 40KM, -40~85°C
SFPGES40D SFP, 1000Mbps, LC, single, DDM, 40KM, 0~70°C


  • The DS108 is equipped with eight 100M Ethernet ports for connecting robots and PLCs.

  • The DS406 is equipped with 4 Gigabit Ethernet ports and 2 100M and Gigabit SFP ports to provide a long-distance connection to the control center.

  • The DS406 supports the G.8032 v1 / v2 ERPS network redundancy, keeps the network available.

  • Wide temperature designdesign for operating in -40~75℃ environment.
