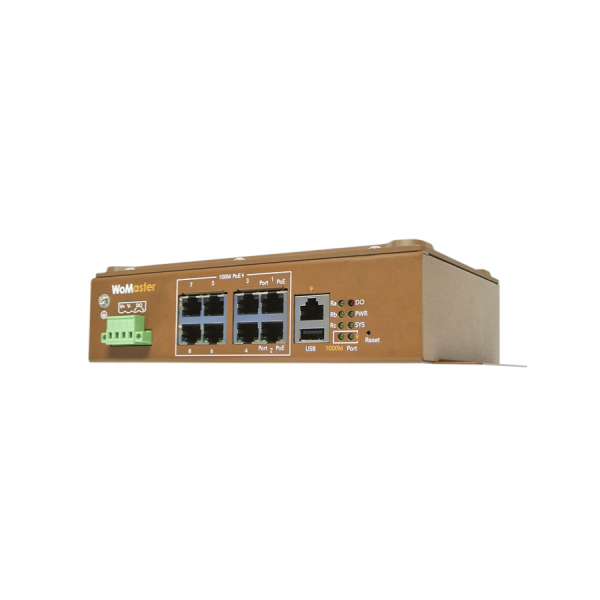

WR309P
  1.  Routing PoE Switch for BUS/Vehicle and Automation

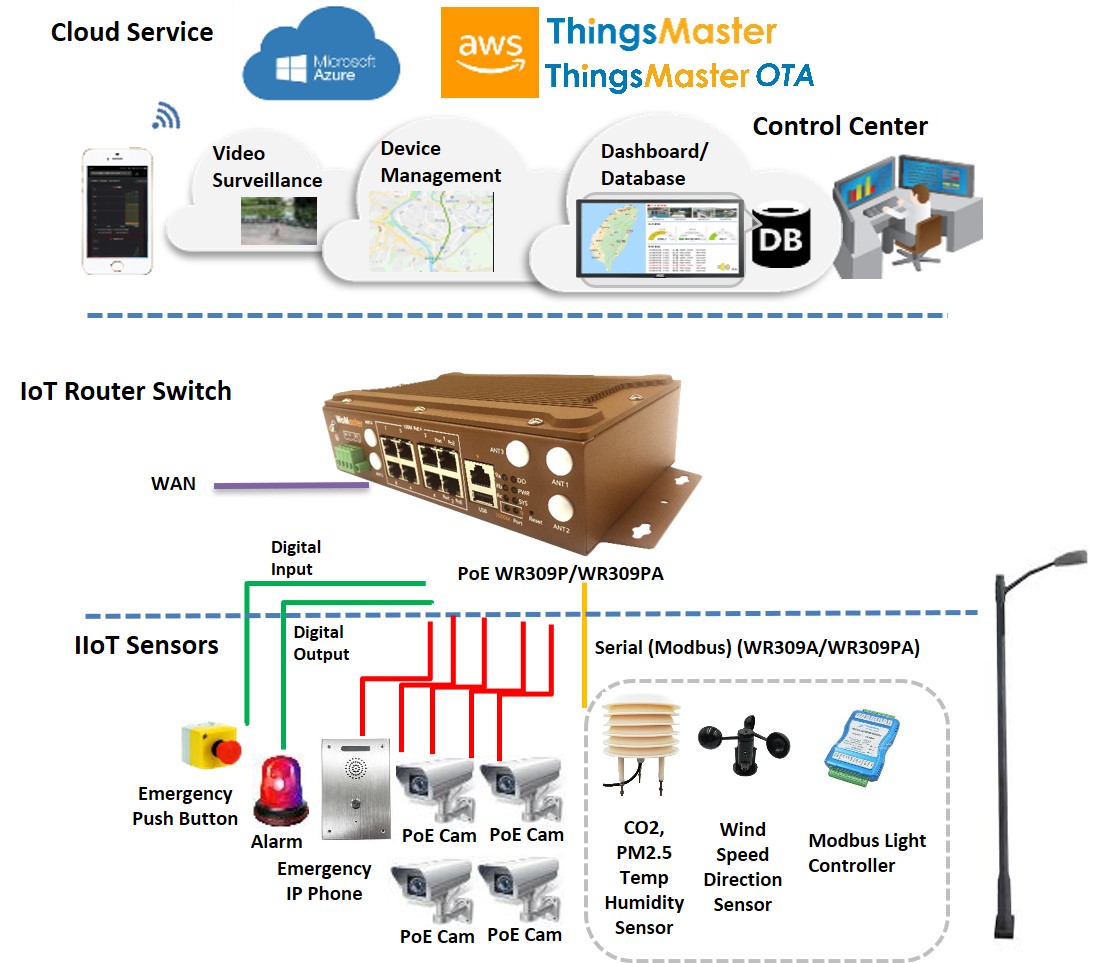

The routing switches WR309 series include WR309 with 8-Port Ethernet and 1 GbE WAN port, WR309P-with 8-port PoE+ boost up to 30W/port for bus/vehicle, WR309A with 1 RS232/422/485 serial port, 3 DIs and 2 DOs for IoT sensors, DIO applications and WR309PA for both PoE and IoT features. The security design includes static routing, IPSec VPN, DMZ, and a stateful firewall inspection in order to segregate networks and protect mission-critical data. With support for Network Address Translation (NAT) and port-forwarding, it isolates the threats from the Internet. The USB port for configuration can help mass installation and site support. The embedded MQTT and RESTful API enables public cloud integration such as AWS®, Azure®, or user-defined cloud. The private cloud platform ThingsMaster® by WoMaster can also be set up for an instant and secured access for video surveillance and IoT control over the cloud.
Related Downloads Inquiry cart
Ethernet Routing Switch
•8 Fast Ethernet ports with100M wire-speed switching
•One Gigabit Ethernet WAN port for uplink or NVR

Extreme PoE Capability (WR309P, WR309PA)
•Provides 8-port IEEE 802.3af/at compliance PoE+, up to 30W per port
•12/24V to 54VDC Booster PoE
•Up to 120W PoE power budget
•Complete PoE management including per-port Power   Budget Control, PoE Scheduling and PoE Status

Industrial IoT Gateway (WR309A, WR309PA)
•One RS232/422/485 with Modbus RTU protocol to connect sensors
•Three Digital Inputs for the sensors or push button
•Two Digital Outputs for alarm
•MQTT protocol for serial, DI and DO data to IIoT cloud

Dynamic Routing with Redundancy Protection
・RIPv1&v2, OSPFv1&v2 for intra-domain routing within
   an autonomous system
・Efficient unicast/multicast* static routing
・VRRP guarantees sustainable routing in a single point
   of failure

Enhanced Cyber Security for Critical Application
•Firewall for traffic classification, port forwarding
•NAT, DMZ for LAN protection
•OpenVPN, IPsec, L2TP for secure connection (not available for EurAsEC countries)
•Port Security
•HTTPs/SSH secure login

Industrial IoT LAN & Cloud Management
・Various configuration paths, including CGI WebGUI,
     CLI, SNMP and RMON*
・WoMaster Software Utilities
    -NetMaster: Network Management System with VLAN visualization* and ERPS* Ring
    -ViewMaster: Configuration Management
    -ThingMaster: Interactive monitoring dashboard by Modbus Tag to collect data from Modbus devices
    -ThingMaster OTA: Realtime map showing the status, signal strength, location of the remote devices, over-the-air batch device registration, configuration and firmware upgrade*, alerts on critical events to prevent downtime
・Support MQTT protocol, ready to use AWS/Azure and Private Cloud Agent for cloud management
・LLDP* for topology control, auto-topology drawing
・USB for easy field configuration and firmware update
・ Diagnostic tool includes Ping, TFTP, SNMP Trap, E-mail Alert and System Log


Rugged Design for Bus, Wayside Surveillance, ITS Application
•Railway: EN50155 / EN61373
•IEC61000-6-2/IEC61000-6-4 heavy industrial EMC
•ITS/Traffic Control: NEMA-TS2 compliance
•Vehicle: E-mark compliance
•Radio RED for CE Marking
•Emission: FCC part 15 B Class A
•Effective heat dissipation design for operating in -40~75oC environments
Technology
Standard IEEE 802.3 10Base-TX Ethernet
IEEE 802.3u 100Base-TX Fast Ethernet
IEEE 802.3ab 1000Base-T Gigabit Ethernet Copper
IEEE 802.3af/at Power-over-Ethernet (WR309P, WR309PA)
IEEE 802.1Q for VLAN
Interface
Ethernet Port WR309/WR309A
LAN: 8 x 10/100Base-TX RJ45, Auto-Negotiation, Auto MDI/MDI-X
WAN: 1 x 100/1000Base-T RJ45, Auto-Negotiation, Auto MDI/MDI-X
WR309P/WR309PA
LAN: 8 x 10/100Base-TX RJ45, Auto-Negotiation, Auto MDI/MDI-X, IEEE 802.3af/at PoE/PoE+
WAN: 1 x 100/1000Base-T RJ45, Auto-Negotiation, Auto MDI/MDI-X
System LED (Front Panel) 1x DO: Red On
1x Power: Green On
1x SYS: Ready: Green On, Firmware Updating: Green Blinking
1x WAN: Link: Green On, Activity: Green Blinking
1x 1000M: WAN port speed, 1000M: Green On, Not 1000M: Off

Ethernet Port LED Link: Green On, Activity: Green Blinking
WR309P/WR309PA
PoE power feeding: Amber on, PoE power not feeding: Off
USB 1 USB for Configuration/Firmware Update
Reset System Reset(2~6 Seconds) / Default Settings Reset(over 7 Seconds)
Power Input, Digital Output 4-Pin Removable Terminal Block Connector
  2 Pin for Power Input
  2 Pin for DO (Relay Alarm)
DO: Dry Relay Output with 0.5A/24V DC
IIoT Expansion (Back Panel)
WR309A/ WR309PA    		 LED:
1x DO: Red On
1x Serial: Green Blinking, Packets transmitting/receiving
Serial:
1x RS232/422/485, DB9 female
Digital Input/Output:
1x 6-Pin Removable Terminal Block Connector
  4 pin for 3x Digital Input, High: 2-30V, Low: 0-1V,
  2-pin for 1x Digital Output: max. 30V/100mA

Software
Management CGI WebGUI, Command Line Interface (CLI), IPv4/IPv6*, Telnet, SNMP v1/v2c/v3, DDNS, DHCP server/client, DHCP Relay, TFTP, System Log, SMTP, ARP response over 802.2 LLC SNAP, Proxy ARP, DNS (client/proxy)
Traffic Management Flow Control, Traffic shaping
Filter IEEE802.1Q VLAN
Security IEEE 802.1X/RADIUS, TLS v1.2, HTTPs/SSH, First login password management
Encryption: 64/128-bit WEP(Wired Equivalent Privacy), TKIP(WPA-PSK), AES(WPA2-PSK)
Advanced Security TACACS+, Multi-user authentication
Time Management NTP, SNTP, Cellular Time
WAN / Routing / NAT/
Firewall / VPN		  Routing: RIPv2, OSPFv2, VRRPv2
 NAT: 1-1 NAT, NAPT(SNAT/DNAT), DMZ
 Firewall: Stateful Inspection firewall, IP/Port Filter, MAC Filter*
 VPN: IPSec, OpenVPN,  L2TP, GRE, PPTP* (not available for EurAsEC countries)
IIoT Industrial Protocol Modbus RTU, MQTT, RESTful API
Private Cloud ThingsMaster, ThingMaster OTA
Public Cloud AWS Agent, Azure Agent
Location Google map, Baidu map
MIB MIB-II, Entity MIB, WoMaster Private MIB
Utility ViewMaster, NetMaster, Ping, Traceroute
Serial communication
(WR309A/ WR309PA)		 TCP Server/TCP Client/UDP mode, TCP Alive check, Force TX Delimiter/Timeout/interval/length, Long Distance Termination
PoE(WR309P,WR309PA)
Power forwarding mode Alternative A
PoE Power Budget System: Max. 120W@70°C/12VDC, Max.60W@70°C/8VDC
Per Port: Max. 30W
PoE Standard IEEE 802.3af/at
Management PoE Enable/Disable, System/Port Power Budget Control, PoE Scheduling, PoE Status
Power Requirement
Input Voltage WR309P/WR309PA:
12/24VDC (8~54VDC with booster to 54V) min. 8V low-peak auxiliary voltage
WR309/WR309A:
12/24VDC (8~32VDC)
Reverse Polarity Protect Yes
Input Current WR309: 0.2A@24VDC, 0.58A@8VDC
WR309A: 0.21A@24VDC, 0.6A@8VDC
WR309P/309PA: 5.67A@24VDC with 120W PD Loading, 10.76A@8VDC with 60W PD loading
Power Consumption WR309: Max. 4.8W@24VDC full traffic, suggest to reserve 15% tolerance.
WR309A: Max. 5W@24VDC full traffic, suggest to reserve 15% tolerance.
WR309P/WR309PA:
Max. 138.08W@24VDC with 120W PD loading, Max. 86.08W@8VDC with 60W PD loading, suggest to reserve 15% tolerance.
Mechanical
Installation Wall mount / DIN Rail kit
Enclosure Material Steel Metal with Aluminum
Dimension WR309P/WR309PA
200x 55 x 126 (W x H x D) / without Mounting Clip
WR309/WR309A
200x 51 x 126 (W x H x D) / without Mounting Clip
Ingress Protection IP30
Weight ~1350g without package
Environmental
Operating Temperature & Humidity -40°C~70°C , 5%~95% Non- Condensing
Storage Temperature -40°C~85°C
MTBF >200,000 hours
Warranty 5 years
Approval
Safety EN60950-1 Compliance
EMC EN61000-6-2/EN61000-6-4
EMI CISPR 22, FCC part 15B Class A
Radio RED Compliance
Safety: EN 62368-1
EN 50385/EN62311 MPE assessment
EN 301 489-1/17/19/52, EN 55032/55024
EN 300 328/EN 301 893
EN 301 908-1
FCC Part 15B
Railway EN50155 / EN61373
Ordering Information
 Model Name
WR309 Industrial 8+1G port Routing Switch, USB
WR309A Industrial 8+1G port Routing Switch, USB, 1xSerial+3DI+2DO
WR309P Industrial 8+1G port PoE Routing Switch, USB
WR309PA Industrial 8+1G port PoE Routing Switch, USB, 1xSerial+3DI+2DO
Package List
1 x Product Unit
1 x 4-pin Removable Terminal Block Connector
1 x 6-pin Removable Terminal Block Connector (WR309A/ WR309PA)
1 x Quick Installation Guide
1 x Din Clip

​
