Extend Network with Fiber•Multi-Mode Fiber 2KM/ SC Type Connector
•Single-Mode Fiber 30KM/ SC Type Connector
|
Long Packet Size Forwarding•64~1536 Bytes for double-tag VLAN
|
Broadcast Storm Protection•Auto drop incoming broadcast packets for network availability protection
•Fast enable/disable through DIP Switch for customer requirement
|
Easy DIP switch Configuration•QoS Control
•VLAN
•Broadcast Storm Protection
|
QoS Service for Time-Sensitive Applications•Easy DIP Switch Configuration
•VLAN Tag Hi/ Low priority ID, 8:1 scheduling scheme
|
Hardened System Design•Operates Under -40 ~75°C Environment
•Wide Range Redundant Power Input, 10~60Vdc or AC18~30V
•Ingress Protection – IP31
|
Pre-defined High-Performance VLAN Group•Member port individual grouping with Uplink port #5
•Easy DIP Switch Configuration
|
Special Vertical Market Application•Factory Automation – Real-Time Machine Communication
•Low AC Voltage application – AC18~30V Building Automation
|

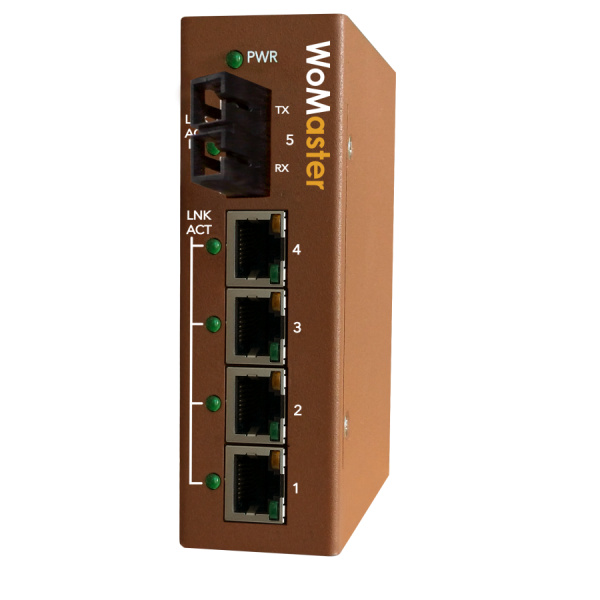

DS105AF
The DS105A-F Fiber series are industrial grade fast Ethernet switches with 1 Fast Ethernet Fiber for uplink and 4 ports RJ-45 for downlink. It embedded several network features for the industrial automation application. With the Broadcast filtering , VLAN and CoS functions will enhanced the network transmission performance.
It supports 9.6~60Vdc wide range power input, or low voltage 18~30Vac for building automation control.
The wide operation temperature -40~75C and heavy industrial EMC design brings DS105A-F suitable for any industrial application.
Technology |
|||||
| Standard | IEEE 802.3 10Base-T Ethernet | ||||
| IEEE 802.3u 100Base-TX Fast Ethernet | |||||
| IEEE 802.3x Flow Control and back-pressure | |||||
| IEEE 802.1p Class of Service (CoS) | |||||
| IEEE 802.1Q Quality of Service | |||||
Performance |
|||||
| Switch Technology | Store and Forward Technology with Non-Blocking Switch Fabric | ||||
| MAC Address Table | 1K | ||||
| Packet Buffer | 448K bits | ||||
| Transfer performance | 10Base-T: 14,880pps, 100Base-TX: 148,800pps | ||||
| Forwarding Packet | 64~1536 Bytes | ||||
| Broadcast Filtering |
DIP Switch Configurable. (DIP Switch -1) Broadcast Storm Packet Filtering Threshold: 100Mbps Link Speed: 600 Packets/ Per Second 10Mbps Link Speed: 60 Packets /Per Second Default Setting (Off) |
||||
| Quality of Service |
DIP Switch Configurable. (DIP Switch -2) Compliance with IEEE 802.1p class of service with Tag Based Priority. Each port support 2 priority queues, the output queue scheduling with 16 (High):1(Low) scheme. Default Setting (Off) |
||||
| Port Based VLAN |
DIP Switch Configurable. (DIP Switch -3) Port VLAN Grouping Rule: Port 5-1 / Port 5-2 / Port 5-3 / Port 5-4 (Port 5 Uplink Port) Default Setting (Off) |
||||
Interface |
|||||
| Ethernet Port |
DS105A-S/M-SC: 4 x 10/100Base-TX RJ45, Auto-Negotiation, Auto MDI/MDI-X1 x 100Base-FX (SC Connector) DS105A-S/M-ST: 4 x 10/100Base-TX RJ45, Auto-Negotiation, Auto MDI/MDI-X 1 x 100BaseFX (ST Connector) |
||||
| System LED | 1 x Power: Green On | ||||
| Ethernet Port LED | RJ-45:Link (Green On), Activity (Green Blinking) Fiber: Link (Green On), Activity (Green Blinking) |
||||
| DIP Switch |
DIP Switch -1: Broadcast Storm Protection Control (Default Disable/ Off) DIP Switch -2: QoS Control (Default Disable/ Off) DIP Switch -3: Port Based VLAN (Default Disable/ Off) |
||||
| Power input | 4-Pin Removable Terminal Connector with Power Redundancy, Polarity Auto Reverse
•V+ (L): DC + or Live
•V- (N): DC - or Neutral
•Negative DC Power Input Supported ( -48V or -24V Power System)
|
||||
Optical Fiber (DS105A-M/S) |
|||||
| Distance | Wavelength | TX power | RX Sensitivity | Link Budget | |
| Single-Mode | 30KM | 1310nm | -15dBm (Min) | -34dBm (Max) | 19dB |
| Multi-Mode | 2KM | 1310nm | -20dBm (Min) | -32dBm (Max | 12dB |
|
Single Mode 8~10/125um (DS105A-WDM13)* |
20KM | TX:1310nm RX:1550nm |
-15~ -3dBm | -32dBm | 29dB |
|
Single Mode 8~10/125um (DS105A-WDM15)* |
20KM | TX:1550nm RX:1310nm |
-15~ -3dBm | -32dBm | 29dB |
Power Requirement |
|||||
| Input Voltage |
DC 24V, Rating 9.6~60Vdc, Redundant Power Input with Auto Polarity Reverse function Low AC Voltage 18~30Vac for the Building Automation Control |
||||
| Auto Polarity Reverse | Yes | ||||
| Power Consumption | DS105A: 3 watts (Maximum) DS105A-m / DS105A-s: 4 watts (Maximum) |
||||
Standard |
|
| EMC | EN61000-6-2/ EN61000-6-4 |
| EMI | CISPR 22, FCC part 15B Class A |
| EMS |
EN61000-4-2 ESD: 8KV(Air), 4KV(Contact) EN61000-4-3 RS: 20V/m(80M~1GHz), 10V/m(1.4G~2.1GHz), 5V/m(2.1G~2.5GHz)* EN61000-4-4 EFT: 2KV (Power), 1kV (Signal Port) EN61000-4-5 Surge: Power: 1KV Ethernet Port: 1KV Clamping EN61000-4-6 CS: 10Vrms(Power, Signal Port)* EN61000-4-8 Magnetic Field: 30A/m continues /300A for 1~3s* |
| Mechanical | |
| Installation | DIN Rail |
| Enclosure Material | Steel Metal |
| Dimension | 32mm (W) x 103mm (H) x 82mm (D) / without DIN Rail Clip |
| Ingress Protection | IP31 |
| Weight | 305g without package |
| Environmental | |
| Operating Temperature & Humidity | -40°C~75°C , 0%~95% Non-Condensing |
| Storage Temperature | -40°C~80°C |
| MTBF | >200,000 hours |
| Hi-Pot Insulation | AC1.0 KV for Power- Chassis Ground, Power – Ethernet, Chassis Ground- Ethernet, Ethernet - Ethernet |
| Warranty | 5 years |
Model Name |
Description |
| DS105A-M-SC-2 | Industrial 4-port Unmanaged Ethernet Switch, 1 x multi-mode, 2km/1310nm, SC |
| DS105A-M-ST-2 | Industrial 4-port Unmanaged Ethernet Switch, 1x multi-mode, 2km/1310nm, ST |
| DS105A-S-SC-30 | Industrial 4-port Unmanaged Ethernet Switch, 1x single-mode, 30km/1310nm, SC |
| DS105A-S-ST-30 | Industrial 4-port Unmanaged Ethernet Switch, 1x single-mode, 30km/1310nm, ST |
| Package List | |
| 1 x Product Unit | |
| 1 x 4-pin Removable Terminal Connector | |
| 1 x Attached Din Clip | |
| 1 x Quick Installation Guide |
