DS11

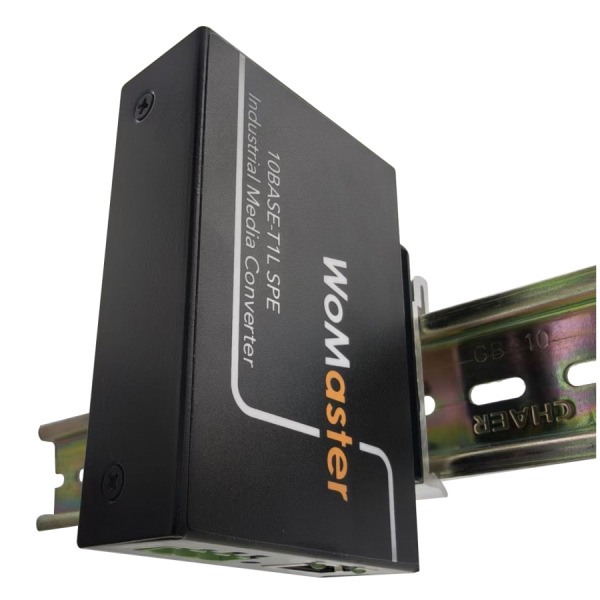

  1.  Industrial 1-port 10Base-T1L Single Pair Ethernet Converter

The DS11 Unmanaged Industrial SPE Media Converter is designed for seamless integration into industrial automation networks, enabling 10 Mbps Ethernet transmission up to 1000 meters over existing single-pair fieldbus cables in compliance with the IEEE 802.3cg (10BASE-T1L) standard. Featuring one 10BASE-T1L SPE port and one 10BASE-T RJ45 port in a rugged IP30-rated metal enclosure with operating within a -40°C to 75°C temperature range, DS11 ensures reliable performance in harsh environments. Supporting both DIN-Rail and Wall Mount installation, the DS11 acts as a robust bridge between legacy fieldbus systems and modern Ethernet infrastructure, streamlining cabling, reducing deployment costs, and extending Industrial Ethernet to the field level.
Inquiry cart
Port Configuration:
•1 × 10BASE-T1L Single Pair Ethernet (SPE) port
•1 × 10BASE-T RJ45 port
Standards Compliance:
•IEEE 802.3cg (10BASE-T1L)
•IEEE 802.3 (10BASE-T)
Transmission Distance:
•Up to 1000 m over existing single-pair fieldbus cables
Configuration & Indicators:
•DIP switch for Auto / Master / Slave mode selection
•LED indicators for link and activity status
•3-pin terminal block for SPE connection
Mechanical & Environmental:
•Metal housing, IP30 protection
•Operating temperature: -40°C to 75°C
•Mounting: DIN-Rail or Wall Mount

Specifications
 Technology
Standard

IEEE 802.3 10Base-T Ethernet

10BASE-T1L (Compliant)
 Interface
Ethernet Port

1 x 10BASE-T Port

1 x 10BASE-T1L Port
System LED

System: PWR (G)

SPE: LNK/ACT (G/A)

10BASE-T: 10 (G), LNK/ACT (G)
DIP Switch

Auto, Master/Slave
Power Input

3-Pin Removable Terminal Connector
 Power Requirement
Input Voltage 12/24V/48DC (12-48 VDC)
Power Consumption 3W
 Mechanical
Installation  DIN Rail
Enclosure Material Steel Metal
Dimension

86.2 x 23.4 x 59.4 mm
Ingress Protection IP30
Weight 0.2kg without package
 Environmental
Operating Temperature & Humidity -40°C~75°C , 0%~95% Non-Condensing
Storage Temperature -40°C~80°C
Warranty 3 years

​
Ordering Information
 Model Name
DS101-M-SC-2

Industrial 1-port 10Base-T1L Single Pair Ethernet Converter
Package List
1 x Product Unit
2 x 3-pin Removable Terminal Connector
1 x  Attached Din Clip
1 x Quick Installation Guide
