DS210

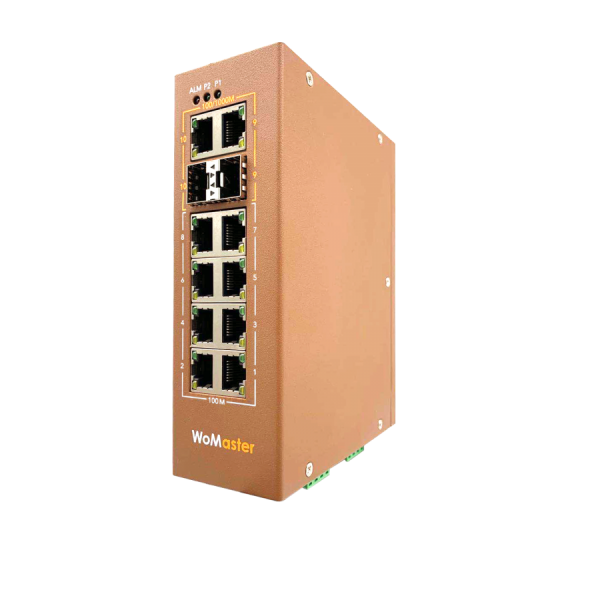

DS210 is an industrial 10-port unmanaged Ethernet switch That provides 8-port Fast Ethernet for economical solution to industrial Ethernet connection. Besides, the switch is equipped with QoS feature and additional 2-port Gigabit Ethernet uplink; prioritized stream such as video and VoIP are also optimized.
Related Downloads Inquiry cart

High Throughput Ethernet Switching
・10-port Ethernet, including 8-port Fast Ethernet and
2-port Gigabit Ethernet

・2-port Gigabit Ethernet uplink features QoS for video and VoIP data stream

・8K MAC address table

・Stores and Forwards with non-blocking switch fabric

Rugged Mechanical Design

・Robust design protects from mechanical deformation
・Ribbed side panels for effective heat dissipation
・Wide operating temperature range
 -40°~ 70°C
・Selectable gigabit uplink: RJ45 or SFP by model for high flexibility of cable types and distances
・CE marking
・IEC61000-6-2/IEC61000-6-4 heavy industrial EMC
EN50121-4 railway trackside EMC
・Meet ESD/Surge Severity Level 3 Criteria A requests, no traffic loss during and after the test
・Emission: CISPR 22/ FCC part 15B class

Specifications
 Technology
Standard IEEE 802.3 10Base-T Ethernet
IEEE 802.3u 100Base-TX Fast Ethernet
IEEE 802.3ab 1000Base-T Gigabit Ethernet copper
IEEE 802.3x Flow Control and back-pressure
IEEE 802.1p Class of Service (CoS)
 Performance
Switch Technology Store and Forward Technology with Non-Blocking Switch Fabric
Number of MAC Address 8K
Packet Buffer Memory  1M bits
Transfer performance 10Base-T: 14,880pps, 100Base-TX: 148,800pps, 1000Base-TX: 1,488,100pps
 Interface
Ethernet Port 8 x 10/100Base-TX RJ45, Auto Negotiation
2 x 100/1000Base-T RJ45,
Auto Negotiation
System LED 1 x Power: Green On
1 x DO:
Red On
Ethernet Port LED Link (Green On), Activity (Green Blinking), Full duplex (Amber on), Collision (Amber Blinking)
Gigabit Ethernet Port LED Link (Green On), Activity (Green Blinking), Speed (Amber Blinking, 10M:1, 100M:2, 1000M:3 times)
DIP Switch Ethernet Port Fail Alarm
Power Input, Digital Output 4-Pin Removable Terminal Connector
   2 Pin for Power Input
   2 Pin for DO: Dry Relay Output with 0.5A /24V DC
 Power Requirement
Input Voltage 12/24VDC(8~32VDC)
Reverse Polarity Protect Yes
Input Current 0.37A@24V
Power Consumption Max 8.88W@24VDC full traffic, suggest reserving 15% tolerance
 Mechanical
Installation DIN Rail
Enclosure Material Steel Metal with Aluminum
Dimension 78.5(W) x 149(H) x 125(D) mm / without DIN Rail Clip
Ingress Protection IP30
Weight 1.3KG (device) / 1.7KG (full package)
Package 240(W)x200(L)x130(H)mm (package)
16pcs / carton 410(W)x 550(L)x490(H)mm (1.5KG)
 Environmental
Operating Temperature & Humidity -40°C~70°C , 0%~95% Non-Condensing
Storage Temperature -40°C~80°C
MTBF >200,000 hours
Warranty 5 years
 Standard
Safety EN60950-1 Compliance
EMC EN61000-6-2/EN61000-6-4
EMI CISPR 22, FCC part 15B Class A
EMS EN61000-4-2 ESD: 8KV(Air), 6KV(Contact) Criteria A
EN61000-4-3 RS: 20V/m(80M~1GHz), 10V/m(1.4G~2.1GHz), 5V/m(2.1G~2.5GHz)
EN61000-4-4 EFT: 2KV (Power, Signal Port, GND)
EN61000-4-5 Surge: Power: 2KV/1KV(Line to Ground/Line to Line), Signal Port: 2KV(Line to Ground) Criteria A
EN61000-4-6 CS: 10Vrms(Power, Signal Port)
EN61000-4-8 Magnetic Field: 30A/m continues /300A for 1~3s
Railway EN50121-4

Datasheet... QIG...
Ordering Information
 Model Name
DS210 Industrial 8+2G Unmanaged Ethernet Switch
DS210-2F (By Request) Industrial 8+2G Unmanaged Ethernet Switch, 2 SFP
Package List
1 x Product Unit
1 x 4-pin Removable Terminal Connector
1 x Attached Din Clip
1 x Quick Installation Guide

Optional Accessory
 Item
MK-D1-2 Wall-mounting kit with 2 plates and 8 screws
PSD20-24
20W/24VDC DIN-rail power supply
PSD40-24 40W/24VDC DIN-rail power supply

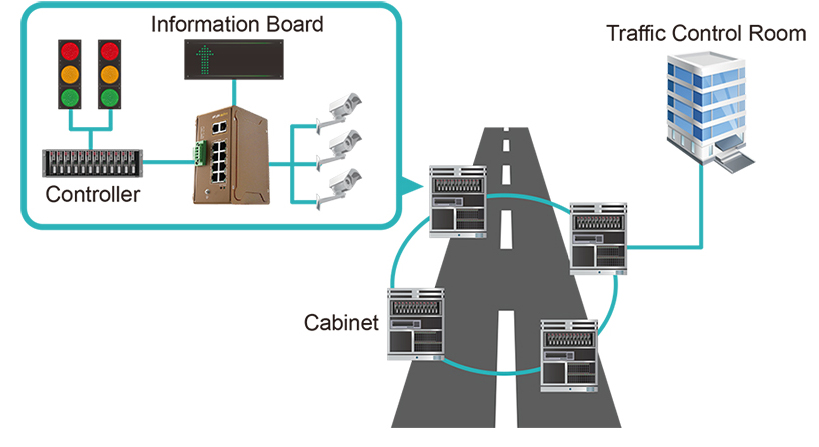

A perfect Traffic Signal Control System are vital for safety of all pedestrians and vehicles.

  • DS210 is installed inside the traffic control boxes on the roadway. It connects with all traffic control devices such as traffic lights, information boards and IP cameras.

  • 8-port Fast Ethernet and 2-port Gigabit Ethernet provide the fast data transmission, and transmit real-time data to the Traffic Control Room.

  • 2-port Gigabit Ethernet uplink features QoS for video and VoIP data stream

  • Wide operating temperature range -40°~ 70°C.
