DS408H

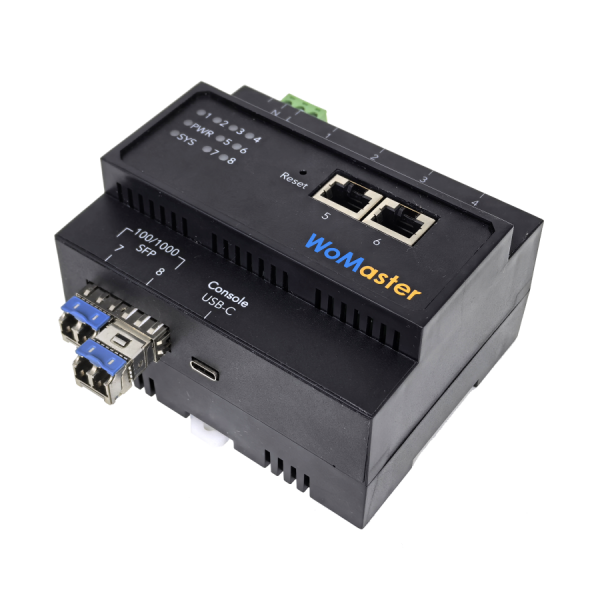

  1.  Industrial 8-port Managed Gigabit Ethernet Switch with 2 Gigabit SFP

DS408H, the 8-port Managed Gigabit industrial Ethernet switch, adopting a housing reminiscent of PLC designs, is ideal for Din-Rail installations in automation control cabinets with 2 port Gigabit Fiber communication. Engineered to withstand harsh conditions, the protection level of DS408H aligns with heavy industrial communication standards, with support for both low voltage 11~ 27Vac and wide range 10~36V DC power inputs, while enduring wide temperatures from -40~75 ℃. Additionally, it incorporates most of L2 features, ERPS, RSTP, IGMP/Snooping, QoS,VLAN, SNMP and WEB UI management features to ensure optimal network performance. The switch forwarding mechanism, enables seamless communication for a wider range of industrial protocols for automation control systems. Engineered to withstand harsh conditions, the protection level of DS108H aligns with railway communication standards, with support for both low voltage 9V to 27Vac and wide range 10V to 36V DC power inputs, while enduring wide temperatures from -40~75 ℃. Additionally, it incorporates broadcast storm filtering, Quality of Service (QoS), and Port-Based VLAN features to ensure optimal network performance. The switch forwarding mechanism, enables seamless communication for a wider range of industrial protocols such as Profit-Net, Ethernet/IP, and Modbus/TCP, essential for automation control systems.
Related Downloads Inquiry cart

High Speed Gigabit Switch with Fiber

•6 ports 100/1000Mbps RJ-45
•2 Ports SFP Socket, 100/  1000Mbps WeB Setting

Management

•USB Type-C for Console Management
•Web User Interface Management
•SNMP V1/V2c/V3 , RMON, SNMP Trap
DHCP Server/ Client, DHCP Relay Option 82

Various Network Traffic Control

•Port Ingress/ Egress Rate Control
•VLAN with port isolation
•IGMP Snooping, Broadcast Storm Filtering
•Traffic Priority Control, Ingress/ Egress Rate Control
•Port Aggregation – IEEE 802.3ad LACP
•Network Fault Redundancy – IEEE 802.1d STP, IEEE 802.1w RSTP, ERPS
•Port Access Security with MAC address

Long Packet Size Forwarding

•64~1536 Bytes for double-tag VLAN
•10Kbytes Jumbo Packet

Hardened System Design

•Wide operation temperature from -40 to 75°C
•Wide Range Redundant Power Inputs, DC 10~36V or AC 11~27V
•IP30 Ingress Protection

Vertical Application

•Process Automation – Real Time Machine Communication
•Low AC Voltage for Building Automation
Technology
Standard IEEE 802.3 10Base-T Ethernet
IEEE 802.3u 100Base-TX Fast Ethernet
IEEE 802.3u 100Base-FX Fast Ethernet Fiber
IEEE 802.3ab 1000Base-T Gigabit Ethernet copper
IEEE 802.3z Gigabit Ethernet Fiber
IEEE 802.3x Flow Control and back-pressure
IEEE 802.1p Class of Service (CoS)
IEEE 802.1Q Quality of Service
IEEE 802.1AB Link Layer Discovery Protocol (LLDP)
IEEE 802.1D-2004 Rapid Spanning Tree Protocol (RSTP)
IEEE 802.1S Multiple Spanning Tree Protocol (MSTP)
IEEE 801.1AX/802.3ad Link Aggregation Control Protocol (LACP)
ITU-T G.8032 Ethernet ring protection switching (ERPS)
Interface
Ethernet Port 6 x 10/100/1000Mbps RJ45, Auto Negotiation , Auto MDI/MDI-X
2 x SFP Socket for 100Mbps, 1000Mbps SFP Fiber Transceiver (Manual setting SFP type)
Support SFP DDM function (Optical RX/TX power, Temperature)
Console Interface USB Type-C connector, supports device-mode, Baud Rate 115200bps, N,8,1 ,
System LED 1 x Power: Green
Ethernet Port LED RJ-45:Link (Green On) Port Link Up;  Activity (Green Blinking): Packet forwarding
Power input 3-Pin Removable Terminal Connector with Polarity Auto Reverse
•V+ (L): DC +  or Live wire
•V- (N): DC -  or Naught wire
•E.G: Earth Grounding, connects to System chassis ground
Hi-Pot Insulation AC 1.5KV : Ethernet Port to Port, Ethernet Port to Power, Ethernet to Chassis Ground, Power to Chassis
Performance & Scalability
Switch Technology Store and Forward Technology with 20Gbps Non-Blocking Switch Fabric
Forwarding rate: 14.88Mpps
MAC Address Table 16K-Entry L2 MAC Table
Packet Buffer 8.4 Mbit SRAM for Packet Buffer
Jumbo Frame Size 12K Bytes jumbo packet size
VLAN Table Size 4K VLAN Entries
Spanning Tree 16 Spanning Tree Instances for RSTP (IEEE 802.1d)
IGMP IGMP V2/V3 and Snooping for MLD v1/v2
Link Aggregation IEEE802.3ad Link Aggregation Control Protocol (LACP), 3 groups (Max.) of link aggregators (2 ports aggregated)
Traffic Prioritize 8 physical queues for each port, IEEE 802.1p QoS and DSCP (IPV4/ IPV6)
Rate Control Ingress/ Egress bandwidth control , 16kbps/ per step up to 1Gbps (Max.)
Isolated Port Communication between isolated port is forbidden.

Power Requirement
Input Voltage DC 24V, Rating 10~36Vdc, Power Input with Auto Polarity Reverse function
Low AC Voltage  11~27Vac for the Building Automation Control
Auto Polarity Reverse Yes
Power Consumption 7 watts (Maximum) / DC 24V; 6watts (maximum)/ DC12V
6 watts (maximum)/ AC 12V; 5.5 watts (maximum)/ AC 18V; 6.5watts (maximum)/AC 27V
Mechanical
Installation DIN Rail Mounting
Enclosure Material Black Color Plastic , ABS+PC, Anti-U/V
Dimension 108 mm (W) x 88 mm (H) x 64 mm (D)  / with DIN Rail Clip
Protection IP30 Ingress Protection, compliance with Pollution Degree 2
Weight 400g without package (To be update)
Software Features
System Management WeB GUI, Command Line Interface (CLI), IPv4/IPv6(RFC2460), Telnet, LLDP, DHCP Server/Client/Option 43/Option 82, TFTP, System Log
Traffic Management Flow Control, Rate Control, Port Mirror, Trust Mode (CoS, DSCP,COS-DSCP, IP Precedence)
Packet Filter IGMP Snooping v2/v3, IGMP Snooping Fast-Leave/Immediate-Leave, MLD Snooping, MVR, IGMP Query,IEEE802.1Q VLAN, QinQ, GVRP
Security HTTPs/SSH
Advanced Security DHCP Snooping, IPSG, DoS
Network Redundancy ITU-T G.8032 v1/v2 Ethernet Ring Protection Switching (ERPSv2), Loop Protection, Port Trunk/  IEEE 802.3ad LACP
Rapid Spanning Tree Protocol/Spanning Tree Protocol (RSTP/ STP)
Time Management NTP protocol, Local time synchronize (PC)
Access Control List Stick MAC address port control
EEE Supported
Environmental
Operating Temperature & Humidity -40°C~75°C , 0%~95% Non-Condensing
Storage Temperature -40°C~80°C
MTBF >200,000 hours
Hi-Pot Insulation AC1.5 KV for Power- Chassis Ground, Power – Ethernet, Chassis Ground- Ethernet, Ethernet – Ethernet
Warranty 5 years
Ordering Information
 Model Name
DS408H

Industrial Managed 6-port Gigabit RJ-45, 2-port SFP 100/1000Mbps Switch, DC24V (10~36V)
Package List
1 x Product Unit
1 x 4-pin Removable Terminal Connector
1 x Quick Installation Guide

Optional Accessory
 Item
PSD5-24
 5W/24VDC DIN-rail power supply
