IDS205G

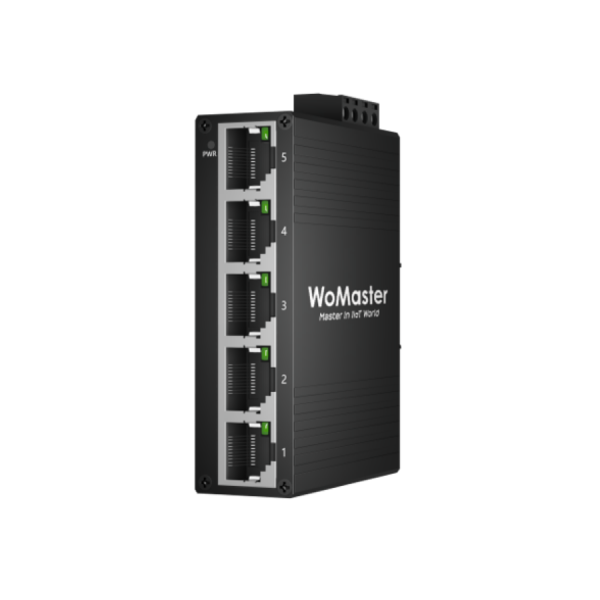

  1.  Mini 5-Port Giga Din-rail Switch

The IDS205G is an IP40-rated, unmanaged industrial Ethernet switch with five 10/100/1000 Base-T ports. Designed with an industrial-grade fanless cooling system, it operates reliably in extreme temperatures ranging from -25°C to 75°C. It offers high-level protection, including 6KV-8KV ESD resistance and a wide input voltage range of 12-58VDC, ensuring exceptional durability against temperature variations and lightning surges. Its compact DIN-rail design allows for easy and flexible installation. These features enhance the reliability and security of industrial networks, making it ideal for applications such as rail transit, smart city projects, intelligent transportation, outdoor surveillance, and other harsh environments.
Related Downloads Inquiry cart
​

Full Gigabit Switching

・5-port Full-Giga Ethernet with Auto Negotiation

・2K MAC address table

・Stores and forwards with non-blocking switch fabric

・Switching capacity: 10Gbps for layer 2 application

・Overall packet forwarding rate: 7.444Mpps

Rugged Mechanical Design

・Robust design protects from mechanical deformation

・IP40 ingress protection to withstand harsh environment

・Wide operating temperature range -25 ~ 75°C

・Anti-static (ESD) air ±6KV contact ±8KV

・Power input DC 12V-58V


​​
Technology
Standard IEEE 802.3 10Base-T Ethernet
IEEE 802.3u 100Base-TX Fast Ethernet
IEEE 802.3 Flow control
IEEE 802.3z 1000Base-X
IEEE 802.3ab 1000Base-T Gigabit Ethernet Copper
Performance
Switch Technology Store and Forward Technology with Non-Blocking Switch Fabric
Number of MAC Address 2K
Packet Buffer Memory 1M bits
Switching capacity 10Gbps application level: layer 2
Overall packet forwarding rate 7.44Mpps
Interface
Ethernet Port 5 x 10/100/1000Base-TX RJ45, Auto Negotiation
System LED 1 x Power: Red On
Ethernet Port LED Link (Yellow On), Activity (Yellow Blinking)
Power input 4-Pin Removable Terminal Connector
Power Requirement
Input Voltage DC12V-52V (dual power supply redundant backup)
Reverse Polarity Protect Yes
Power Consumption store forward power consumption: < 2W
Mechanical
Installation Din-Rail
Enclosure Material Aluminum alloy metal
Dimension

57 (D) x 78(H) x 25(W) mm
Ingress Protection IP40
Weight ~120g without package
Environmental
Operating Temperature & Humidity -25°C~75°C , 5%~95% Non-Condensing
Storage Temperature -40°C~85°C
MTBF 300,000 hours
Warranty 3 Year
Ordering Information
Model Name Description
IDS205G Din-rail 5-Port Giga Ethernet Switch
  Package List
1 x Product Unit
1 x 4-pin Removable Terminal Connector
1 x Attached Din Clip
1 x Quick Installation Guide

Optional Accessory
Model Name Description
MDR-40-24 INPUT:85-264VAC, 120-370VDC, OUTPUT: 24VDC/1.7A, -20 ~ +70℃
