Full Gigabit Switching・8-port Full-Giga Ethernet with Auto Negotiation
・16K MAC address table ・Stores and forwards with non-blocking switch fabric ・Switching capacity: 16Gbps for layer 2 application ・Packet Buffer: 1.5M ・Forwarding Latency: <5us ・Jumbo Frame: 10Kbytes ・Overall packet forwarding rate: 11.9Mpps Rugged Mechanical Design・Robust design protects from mechanical deformation
・IP40 ingress protection to withstand harsh environment ・Wide operating temperature range -25 ~ 75°C ・Anti-static (ESD) air ±15KV contact ±8KV ・Power input DC 12V-58V provides reverse connection protection
|
|

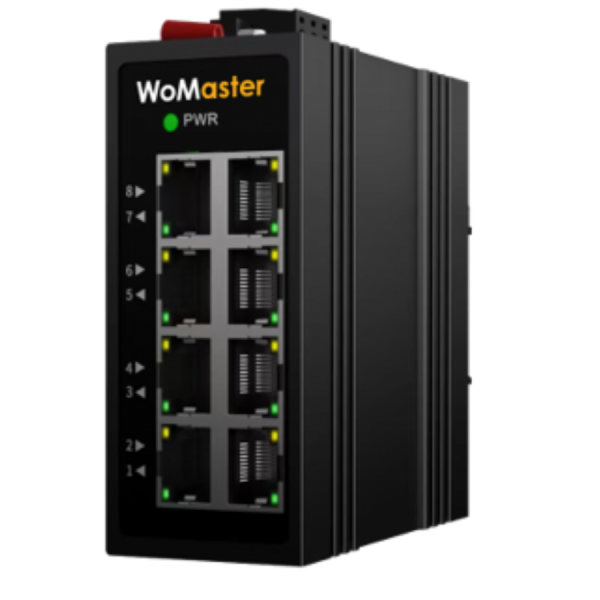

IDS208GS
IDS208GS
8 Port Giga Ethernet Din-rail Switch
The IDS208GS is engineered with a rugged mechanical design and compact form factor, making it ideal for installation in space-constrained industrial cabinets. Its IP40 ingress protection ensures durability in harsh environments, while a wide operating temperature range of -25°C to 75°C enables reliable performance in extreme conditions. The switch also features enhanced protection mechanisms, including ±15KV air and ±8KV contact ESD protection. With a DC 12V–58V power input and built-in reverse polarity protection, the IDS208GS delivers stable and secure operation for demanding industrial applications.
| Technology | |
| Standard | IEEE 802.3 10Base-T Ethernet |
| IEEE 802.3u 100Base-TX Fast Ethernet | |
| IEEE 802.3 Flow control | |
| IEEE 802.3z 1000Base-X | |
| IEEE 802.3ab 1000Base-T Gigabit Ethernet Copper | |
| Performance | |
| Switch Technology | Store and Forward Technology with Non-Blocking Switch Fabric |
| Number of MAC Address | 16K |
| Packet Buffer Memory | 1.5M bits |
| Switching capacity | 16Gbps application level: layer 2 |
| Overall packet forwarding rate | 11.9Mpps |
| Interface | |
| Ethernet Port | 8 x 10/100/1000Base-TX RJ45, Auto Negotiation |
| System LED | 1 x Power: Red On |
| Ethernet Port LED | Link (Yellow On), Activity (Yellow Blinking) |
| Power input | 3-Pin Removable Terminal Connector |
| Power Requirement | |
| Input Voltage | DC12V-58V |
| Reverse Polarity Protect | Yes |
| Power Consumption | store forward power consumption: < 10W |
| Mechanical | |
| Installation | DIN Rail |
| Enclosure Material | Aluminum alloy metal |
| Dimension | 91 (D) x 95(H) x 41mm (W) |
| Ingress Protection | IP40 |
| Weight | ~370g without package |
| Environmental | |
| Operating Temperature & Humidity | -25°C~75°C , 5%~95% Non-Condensing |
| Storage Temperature | -40°C~85°C |
| MTBF | 100,000 hours |
| Warranty | 5 Years |
| Surge Protection | IEC 61000-4-5 Level X (4KV/2KV）（8/20us) Power IEC 61000-4-5 Level 4(4KV/2KV）（10/700us) |
| ESD | IEC 61000-4-2 Level 4（8K/15K） |
| Model Name | Description |
| IDS208GS | Din-rail 8-Port Giga Ethernet Switch |
| Package List | |
| 1 x Product Unit | |
| 1 x 3-pin Removable Terminal Connector | |
| 1 x Attached Din Clip | |
| 1 x Quick Installation Guide |
Optional Accessory
| Model Name | Description |
| MDR-40-24 | INPUT:85-264VAC, 120-370VDC, OUTPUT: 24VDC/1.7A, -20 ~ +70℃ |
