Full Gigabit Switching・16-port Full-Giga Ethernet with Auto Negotiation ・8K MAC address table ・Store and forward with a non-blocking switch fabric ・Switching capacity: 32Gbps for layer 2 application ・Packet Buffer: 2M ・Forwarding Latency: <10us ・Jumbo Frame: 10Kbytes ・Overall packet forwarding rate: 23.8Mpps Rugged Mechanical Design・Robust design protects from mechanical deformation ・IP40 ingress protection to withstand harsh environment ・Wide operating temperature range -25 ~ 75°C ・Anti-static (ESD) air ±15KV contact ±8KV ・Power input DC 12V-58V provides reverse connection protection
|
|

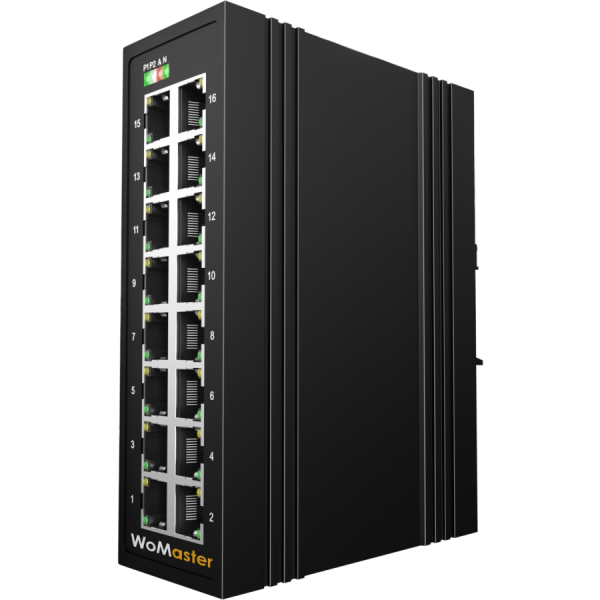

IDS216G
The IDS216G is engineered with a rugged mechanical design to ensure durability and reliability in challenging industrial environments. The IP40 ingress protection shields it from harsh conditions. With a wide operating temperature range of -25°C to 75°C, the IDS216G performs seamlessly in extreme climates. Enhanced protection features include anti-static (ESD) protection up to ±15KV air and ±8KV contact. Additionally, the DC 12V-58V power input offers reverse connection protection, ensuring stable and secure operation in critical industrial applications.
| Technology | |
| Standard | IEEE 802.3 10Base-T Ethernet |
| IEEE 802.3u 100Base-TX Fast Ethernet | |
| IEEE 802.3 Flow control | |
| IEEE 802.3z 1000Base-X | |
| IEEE 802.3ab 1000Base-T Gigabit Ethernet Copper | |
| Performance | |
| Switch Technology | Store and Forward Technology with Non-Blocking Switch Fabric |
| Number of MAC Addresses | 8K |
| Packet Buffer Memory | 2M bits |
| Switching capacity | 32Gbps application level: layer 2 |
| Overall packet forwarding rate | 23.8Mpps |
| Interface | |
| Ethernet Port | 16 x 10/100/1000Base-TX RJ45, Auto Negotiation |
| System LED | 1 x Power: Red On |
| Ethernet Port LED | Link (Yellow On), Activity (Yellow Blinking) |
| Power input | 3-Pin Removable Terminal Connector |
| Power Requirement | |
| Input Voltage | DC12V-58V (dual power supply redundant backup) |
| Reverse Polarity Protect | Yes |
| Power Consumption | store forward power consumption: < 10W |
| Mechanical | |
| Installation | Din-Rail |
| Enclosure Material | Aluminum alloy metal |
| Dimension | 104 (D) x 143(H) x 46mm (W) |
| Ingress Protection | IP40 |
| Weight | ~500g without package |
| Environmental | |
| Operating Temperature & Humidity | -25°C~75°C , 5%~95% Non-Condensing |
| Storage Temperature | -40°C~85°C |
| MTBF | 100,000 hours |
| Warranty | 3 Year |
| Model Name | Description |
| IDS216G | Din-rail 16-Port Giga Ethernet Switch |
| Package List | |
| 1 x Product Unit | |
| 1 x 3-pin Removable Terminal Connector | |
| 1 x Attached Din Clip | |
| 1 x Quick Installation Guide |
Optional Accessory
| Model Name | Description |
| MDR-40-24 | INPUT:85-264VAC, 120-370VDC, OUTPUT: 24VDC/1.7A, -20 ~ +70℃ |
