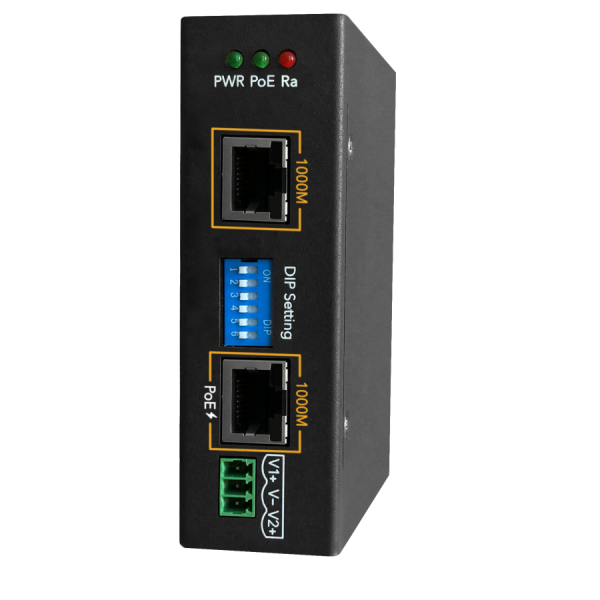

DP101-TX90
  1.  Industrial 90W PoE Giga Injector

The DP101-TX90 is a high-performance industrial 90W PoE injector designed for robust power delivery in demanding environments. It supports IEEE 802.3af/at/bt standards and features an intelligent smart-PoE detection algorithm that ensures compatibility with both standard and legacy/non-standard PD devices. The injector can automatically deliver power over 2-pair or 4-pair wiring and safely limit output when connected to non-standard PDs, such as outdoor dome IP cameras or other high-power equipment. Engineered for reliability, the DP101-TX90 operates flawlessly in extreme temperatures from –40 to 75°C, features IP40-rated metal housing, and meets stringent industrial EMC standards—making it ideal for harsh industrial applications.
Related Downloads Inquiry cart
IEEE 802.3af/at/bt PoE Injector
•Supports Alternative-A and Alternative-B 4-pair power feeding for IEEE 802.3bt, delivering up to 90 W at the PoE/PSE port.
•Provides Alternative-A data-pair power feeding for IEEE 802.3af/at PoE/PSE devices.
•Offers manual power control for safely powering legacy or non-standard PDs with power budget control

High-Speed Connection
•Supports 10/100/1000 Mbps Ethernet with Auto-MDI/MDI-X for seamless cabling.
•Link speed is automatically negotiated between the PD and the data source equipment (switch).
•Provides sufficient bandwidth for high-speed Wi-Fi access points

Smart PoE Capability
•Automatically detects PD type, distinguishing between standard and non-standard devices.
•Applies limited power to non-standard PDs to ensure safe operation.
•Includes built-in over-current and cable-short protection for non-standard PDs.
•System Alarm Indication for over-current protection (OCP), over-voltage protection (OVP) and over-temperature protection (OTP)

Standard Compliance
•IEC 61000-6-2/ IEC 61000-6-4 Heavy Industrial EMC
•High Level Electro Magnetic Susceptibility – Level 3

Hardened System Design
•Engineered to operate reliably in -40 to 75°C harsh environments.
•Metal Enclosure with IP40 ingress protection
•IEC 61000-6-2 / IEC 61000-6-4 compliance for heavy industrial EMC.
•Compliant to Level 2 electromagnetic immunity susceptibility standard.

Compact Size Design
•Palm-sized form factor minimizes space requirements in control cabinets or tight installations.
•Flexible DIN-rail mounting kit for quick, tidy installation.

Special Vertical Market Application
•Factory Automation – Real-time Machine Communication
•Railway Track Side – PLC Communication
•Telecom Unattended Station – Ethernet / Fiber Conversion
Specifications
 Technology
Standard IEEE 802.3 10Base-T Ethernet
IEEE 802.3u 100Base-TX Fast Ethernet
IEEE 802.3ab 1000Base-T Gigabit Ethernet Copper
  IEEE 802.3af Power Over Ethernet, PSE-Injector


IEEE 802.3at High Power PoE, PoE+, PSE-Injector


IEEE 802.3bt  PoE ++ , PSE-Injector
 Interface
Ethernet Port

Data In: RJ-45 support 100/1000Mbps  link speed
PoE/PSE Output : RJ-45 support 100/1000Mbps link speed
System LED

1 x Power: Green On

1 x PoE: Green On (PoE Active)

1 x Ra: Alarm (Red On): Over-Current, Over-Voltage, Over-Temperature event occurred;  Red Blinking: Temperature of PSE Chip exceed 129°C
DIP Switch
DIP1 DIP2 DIP 3~6
Alarm Indicate PoE Enable PoE Auto Mode:1111
PoE Manual Class 0~8 (0000~1000)
0000 Auto Classification
0001 Class 1: 4 w
0010 Class 2: 7 w
0011 Class 3: 15.4 w
0100 Class 4: 30w		 0101 Class 5: 45w
0110 Class 6: 60w
0111 Class 7: 75w
1000 Class 8: 90w
1111 Auto Classification
Power Input 3-Pin Removable Terminal Connector with Power Redundancy, Polarity Reverse Protection
•V1+ , V2+ : Redundant Power Input ( V+ )
•V- (COM): Common Power-GND (V-)  for V1 and V2
 Power Requirement
Input Voltage

54VDC (46~57VDC : IEEE 802.3af, 50~57VDC : IEEE 802.3at, 53~57VDC : IEEE 802.3bt)
Reverse Polarity Protect Yes
Input Current

0.04A @54V full traffic without PD loading
Power Consumption

Max. 106W@54VDC full traffic with PD loading, suggest to reserve 15% tolerance
 PoE
Power forwarding mode

IEEE 802.3af/at: Alternative-A, 2-Pair powering. RJ45 (1,2):V-, RJ45(3,6):V+

IEEE 802.3bt: Alternative A + Alternative B, 4-Pair Powering, RJ45 (1,2,7,8):V- , RJ45 (3,6,4,5):V+
PoE Operation mode

PoE Power Output Enable/Disable

Auto Mode: In Auto Mode, the PSE follows the complete PoE sequence, including Detection, Classification, Powering, and Disconnection. This mode is enabled when DIP switches 2–6 are set to the “On” position.

Manual Mode: In Manual Mode, the Power Sourcing Equipment (PSE) delivers power directly without executing the standard PoE procedures. Detection, Classification, Powering, and Disconnection behaviors are bypassed. The power budget is controlled according to the PoE Class (0–8) configured via the DIP-switch settings.
PoE power budget

IEEE802.3af:15W @ typical DC 48V, Rating 46~57V

IEEE802.3at:30W @ typical DC 52V, Rating 50~57V

IEEE802.3bt:90W @ typical DC 55V, Rating 53~57V
PoE Protection

The DP101-TX is equipped with multiple protection mechanisms, including Over-Voltage Protection (OVP), Over-Current Protection (OCP), and Over-Temperature Protection (OTP). When any of these events is detected, the system immediately shuts down the PSE power output and will not resume operation until the fault condition has cleared.

Over-Temperature Protection (OTP) Threshold:

Shutdown Temperature: PSE output is disabled when the internal temperature exceeds 150°C.

Recovery Temperature: PSE power output automatically resumes once the temperature drops below 129°C.
 Mechanical
Installation  DIN Rail
Enclosure Material Steel Metal
Dimension 30(W) x 103(H) x 82(D) mm / without DIN Rail clip
Ingress Protection IP40
Weight 315 g without package
Packing

54pcs / Carton (50*39*52cm, Weight 29kg)
 Environmental
Operating Temperature & Humidity -40°C~75°C , 0%~95% Non-Condensing (I-Grade)
Storage Temperature -40°C~80°C
MTBF >200,000 hours
Hi-Pot Insulation

AC1.0KV for Power/Ethernet port to Chassis Ground
Warranty 5 years
 Standard Compliance
EMC IEC / EN61000-6-2/EN61000-6-4
EMI CISPR 22, FCC part 15B Class A

​

IEEE 802.3af/at/bt Power Over Ethernet
Ordering Information
 Model Name

DP101-TX90

Industrial Gigabit Ethernet PoE 802.3bt 90W Injector
Package List
1 x Product Unit
1 x 3-pin Removable Terminal Connector
1 x  Attached Din Clip
1 x Quick Installation Guide
