DP210 LV
  1.  Industrial 8+2G Combo PoE Boost switch 24V

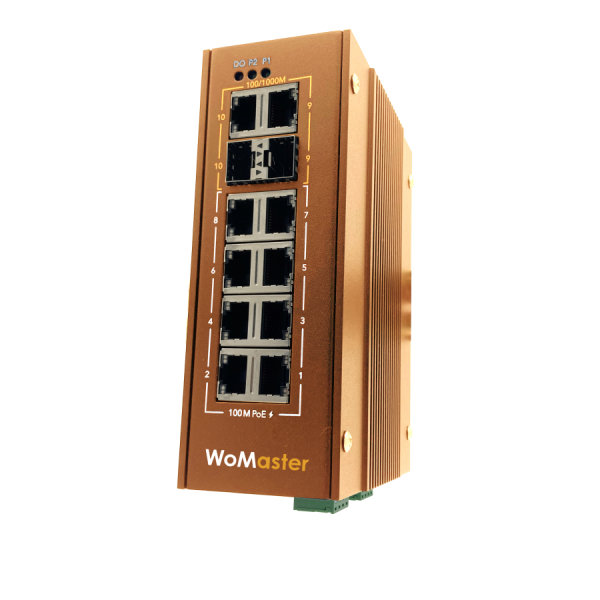

The DP210-LV is an unmanaged Ethernet PoE switch designed for industrial use, that offers 10 ports, including 8 Fast Ethernet IEEE 802.3at/af PoE+ ports and two Combo uplink Gigabit RJ45 and Fiber 100M/Giga SFP ports. This PoE switch has been specifically tailored to cater to low voltage power input systems found in vehicle applications and can boost input voltages of 12V/24V to 54V for PoE feeding. Additionally, the DP210-LV switch is equipped with Quality of Service (QoS) features in the two Gigabit ports to prioritize and optimize streams such as video and VoIP traffic.
Related Downloads Inquiry cart

High Throughput Ethernet Switching

・10-port Ethernet, including 8-port Fast Ethernet PoE+ and 2-port Gigabit Combo RJ45/SFP
・2-port Gigabit Ethernet/Fiber uplink features QoS for video and VoIP data stream

・8K MAC address table

・Stores and forwards with non-blocking switch fabric


Extreme PoE Capability
・8-port IEEE 802.3af/at compliant PoE technology, up to 30W per port
・Full power budget: Max. 120W@70℃/24VDC system PoE power budget
・Low voltage 10VDC input to deliver 60W@70°C output

Rugged Design with Power Booster
・Robust design protects from mechanical deformation
・Ribbed side panels for effective heat dissipation
・10~30V wide power input range design with booster to deliver 8-port PoE at 48V for vehicle applications
・Wide operating temperature range -40°~ 70°C
・Selectable gigabit uplink: RJ45 or SFP for high flexibility of selecting cable types and distances
・CE marking
・IEC61000-6-2/IEC61000-6-4 heavy industrial EMC
・Meet ESD/Surge Severity Level 3 Criteria A requests, no traffic loss during and after the test
・Emission: CISPR 22/ FCC part 15B class A

Specifications
 Technology
Standard IEEE 802.3 af/at Power Over Ethernet
IEEE 802.3 10Base-T Ethernet
IEEE 802.3u 100Base-TX Fast Ethernet
IEEE 802.3ab 1000Base-T Gigabit Ethernet copper
IEEE 802.3x Flow Control and back-pressure
IEEE 802.1p Class of Service (CoS)
 Performance
Switch Technology Store and Forward Technology with Non-Blocking Switch Fabric
Number of MAC Address 8K
Packet Buffer Memory  1M bits
Transfer performance 10Base-T: 14,880pps, 100Base-TX: 148,800pps, 1000Base-TX: 1,488,100pps
 Interface
Ethernet Port

8 x 10/100Base-TX RJ45, Half/Full Duplex, Auto Negotiation

2 x Combo Ports

•2 x 100/1000Base-T RJ45, Half/Full Duplex, Auto Negotiation
•2 x 100/1000MBase SFP, 100/1000M Speed Auto Detect, 100M SFP must be installed before power on
System LED 1 x Power: Green On
Ethernet Port LED

Link (Green On), Activity (Green Blinking), PoE power feeding (Amber on), PoE power not feeding (Amber Off)
Gigabit Ethernet Port LED

Link (Green On), Activity (Green Blinking), Speed (Amber Blinking, 10M:1, 100M:2 1000M:3 times)

SFP LED

Port: Link (Green On), Activity (Green Blinking)
Power Input

4-Pin Removable Terminal Connector

  4 Pin for Power Input
 Power Requirement
Input Voltage 12/24VDC (10-30VDC)
Reverse Polarity Protect Yes
Input Current

0.2 @ 24V (without PoE load)
Power Consumption

Max. 4.8W@24VDC full traffic without PoE load

Max. 130W@24VDC full traffic with PoE load, suggest to reserve 15% tolerance
  PoE
Power Forwarding Mode Alternative B
PoE Power Budget

System: Max. 120W@70°C/24VDC, Max.60W@70°C/12VDC

Per Port: Max. 30W
PoE Standard IEEE 802.3af/at
 Mechanical
Installation DIN Rail
Enclosure Material Steel Metal with Aluminum
Dimension

58(W) x 155(H) x 120(D) mm / without DIN Rail Clip
Ingress Protection IP31
Weight

1.15KG (device)  / 1.55KG (full package)
 Environmental
Operating Temperature & Humidity -40°C~70°C , 0%~95% Non-Condensing
Storage Temperature -40°C~80°C
MTBF >200,000 hours
Warranty 5 years
 Standard
CE

EN IEC 61000-6-2 Immunity standard for Industrial Environment

EN IEC 61000-6-4 Emission standard for Industrial Environment,

  includes  EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6,

                 EN61000-4-8
FCC CISPR 22, FCC part 15B Class A

​
Ordering Information
 Model Name
DP210-LV

Industrial 8FE+2G Combo Unmanaged PoE Switch, 24V booster
Package List
1 x Product Unit
1 x 4-pin Removable Terminal Connector
1 x Attached Din Clip
1 x Quick Installation Guide

Optional Accessory
 Item
MK-D1-2 Wall-mounting kit with 2 plates and 8 screws
PSD240-12
 240W/12VDC DIN-rail power supply
PSD240-24 240W/24VDC DIN-rail power supply

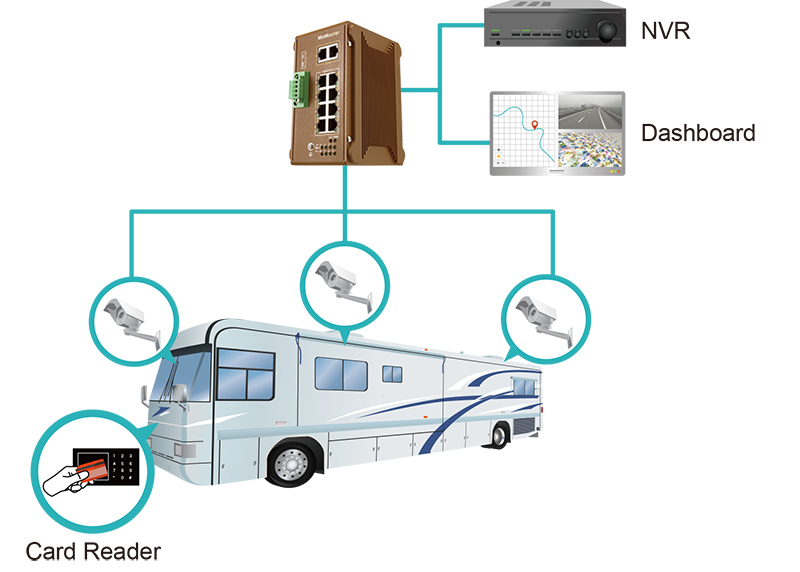

  • New generation bus is equipped with electronic systems providing a large spectrum of options easily updated by the customer on the standard control program.
