Full Gigabit Switching• 5-port Full-Giga Ethernet with Auto Negotiation
• 2K MAC address table • Stores and forwards with non-blocking switch fabric • Switching capacity: 14Gbps for layer 2 application • Overall packet forwarding rate: 10.416Mpps Extreme PoE Capability• Port 1 IEEE 802.3at/at/bt PoE up to 60W
• Port 2~4 IEEE 802.3af/at PoE up to 30W per port • POE budget 120W (DC48V input),120W (DC24V input), 60W (DC12V input) • Power Input 24~54VDC with voltage booster Rugged Mechanical Design• Robust design protects from mechanical deformation
• IP40 ingress protection to withstand harsh environment
• Wide operating temperature range -25 ~ 70°C
• CE marking
• Anti-static (ESD) air ±15KV contact ±8KV
• Network port lightning protection: common mode ±4kV differential mode ±2kV
• Dual power redundancy
|
|

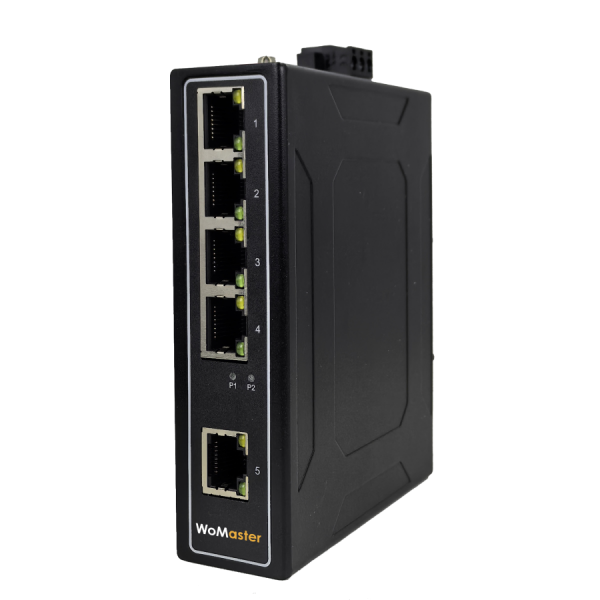

IDP205G-3GP1GBT-LV
The DP205G-3GP1GBT-LV is a rugged industrial PoE switch designed for vehicle and automation deployments. Equipped with a 24-54VDC PoE voltage booster, it efficiently converts lower voltage inputs to provide stable PoE power. Featuring one Gigabit PoE BT+ port (supporting up to 60W, 802.3bt) and three Gigabit PoE ports, it delivers a total PoE budget of up to 120W, ensuring reliable power for high-performance devices like PTZ cameras, wireless APs, and industrial IoT equipment. With PoE Watchdog for automatic device recovery and IP40 protection, this switch is built for harsh environments, ensuring seamless connectivity in demanding mobile and off-grid applications.
| Technology | |
| Standard | IEEE 802.3af/at/bt Power over Ethernet |
| IEEE 802.3 10Base-T Ethernet | |
| IEEE 802.3u 100Base-TX Fast Ethernet | |
| IEEE 802.3ab 1000Base-T Gigabit Ethernet Copper | |
| IEEE 802.3az Energy Efficient Ethernet | |
| Performance | |
| Switch Technology | Store and Forward Technology with Non-Blocking Switch Fabric |
| Number of MAC Address | 2K |
| Packet Buffer Memory | 1M bits |
| Switching capacity | 14Gbps application level: layer 2 |
|
Jumbo Frame |
9216 Bytes |
| Port Isolation | Yes |
| Watchdog | Yes |
| Overall packet forwarding rate | 10.416Mpps |
| Interface | |
| Ethernet Port | 5 x 10/100/1000Base-TX RJ45, Auto Negotiation Port 1~4 PoE |
| System LED | Power 1/Power 2, Power Input(Green ON) |
| Ethernet Port LED | Link (Yellow On), Activity (Yellow Blinking) PoE power feeding: Green on, PoE power not feeding: Off |
| Power input | 3-Pin Removable Terminal Connector (P1+, P2+, P-) |
| Dip Switch |
1: PoE Watchdog 2: Port (1-4) 250 meter transmission 3: VLAN Isolation 4: VIP Power Supply and QoS |
| Power Requirement | |
| Input Voltage | DC24~54V (dual power supply redundant backup) |
| Reverse Polarity Protect | Yes |
| Power Consumption | store forward power consumption: < 3W |
| PoE | |
| Power forwarding mode |
Port 1-4 PoE 802.3at/at: 1/2 + 3/6 - Port 1 PoE 802.3bt: 1/2/4/5 + 3/6/7/8 - |
| PoE Power Budget |
120W (DC48V input),120W (DC24V input), 60W (DC12V input) |
| PoE Mode |
Port 1 IEEE 802.3af/at/bt Port 2~4 IEEE 802.3af/at |
| Mechanical | |
| Installation | DIN Rail |
| Enclosure Material | Aluminum alloy metal |
| Dimension | 91 (D) x 118 (H) x 31 mm (W) |
| Ingress Protection | IP40 |
| Weight | ~550g without package |
| Environmental | |
| Operating Temperature & Humidity | -25°C~70°C , 5%~95% Non-Condensing |
| Storage Temperature | -40°C~85°C |
| MTBF | 300,000 hours |
| Warranty | 3 Years |
| Standard | |
| CE |
IEC 61000-4-5 Level X（4KV/2KV）（8/20us） IEC 61000-4-5 Level X（4KV/2KV）（10/700us） IEC 61000-4-2 Level 4（8K/15K） |
| Model Name | Description |
| IDP205G-3GP1GBT-LV | Din-rail 5-port Giga PoE++ Switch, 24-54VDC Power Input |
| Package List | |
| 1 x Product Unit | |
| 1 x 3-pin Removable Terminal Connector | |
| 1 x Attached Din Clip | |
| 1 x Quick Installation Guide |
Optional Accessory
| Model Name | Description |
| SDR-480P-48 | Din Rail Power Supply INPUT:90-264VAC, 120-370VDC, OUTPUT: 48VDC/10A, -25 ~ +70℃ |
| NDR 480-48 | Din Rail Power Supply INPUT:90-264VAC, 120-370VDC, OUTPUT: 48VDC/10A, -20 ~ +70℃ |
