Full Gigabit Switching• 8-port Full-Giga Ethernet with Auto Negotiation
• 8K MAC address table • Stores and forwards with non-blocking switch fabric • Switching capacity: 16Gbps for layer 2 application • Overall packet forwarding rate: 11.904Mpps Extreme PoE Capability• 8-port IEEE 802.3af/at compliant PoE technology, up to 30W per port
• IEEE 802.3af/at adaptive • Output Voltage: DC 48-57V Rugged Mechanical Design• Robust design protects from mechanical deformation
• IP40 ingress protection to withstand harsh environment
• Wide operating temperature range -25 ~ 70°C
• CE marking
• Anti-static (ESD) air ±15KV contact ±8KV
• Network port lightning protection: common mode ±4kV differential mode ±2kV
• Dual power redundancy
|
|

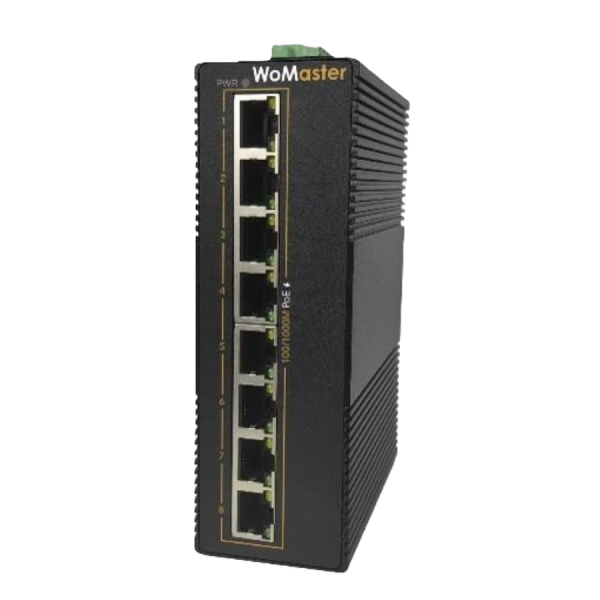

IDP208G-8GP
The IDP208G-8GP features 8 10/100/1000Base-T PoE electrical ports with support for IEEE802.3af (15.4W) and IEEE802.3at (30W) standards, ensuring seamless connectivity for high-power devices. The switch operates within a wide temperature range of -25°C to 70°C with IP40-rated durable aluminum alloy housing. With anti-static protection up to ±15KV air and ±8KV contact, and network port lightning protection up to ±4kV common mode and ±2kV differential mode, the IDP208G-8GP ensures stable and secure operation in industrial environments.
| Technology | |
| Standard | IEEE 802.3af/at Power over Ethernet |
| IEEE 802.3 10Base-T Ethernet | |
| IEEE 802.3u 100Base-TX Fast Ethernet | |
| IEEE 802.3ab 1000Base-T Gigabit Ethernet Copper | |
| IEEE 802.3az Energy Efficient Ethernet | |
| Performance | |
| Switch Technology | Store and Forward Technology with Non-Blocking Switch Fabric |
| Number of MAC Address | 8K |
| Packet Buffer Memory | 1M bits |
| Switching capacity | 16Gbps application level: layer 2 |
| Overall packet forwarding rate | 11.904Mpps |
| Interface | |
| Ethernet Port | 8 x 10/100/1000Base-TX RJ45, Auto Negotiation |
| System LED | 1 x Power: Red On |
| Ethernet Port LED | Link (Yellow On), Activity (Yellow Blinking) PoE power feeding: Green on, PoE power not feeding: Off |
| Power input | 6-Pin Removable Terminal Connector 4 Pin for Power Input (P1+, P1-, P2+, P2-) Pin3 and Pin4: Reserved |
| Power Requirement | |
| Input Voltage | DC48V-57V (dual power supply redundant backup) |
| Reverse Polarity Protect | Yes |
| Power Consumption | store forward power consumption: < 3W |
| PoE | |
| Power forwarding mode | Alternative A |
| PoE Power Budget | Max. 30W, PoE 802.3at/ Port, Total 240W PoE Budget |
| PoE Mode | IEEE 802.3af/at |
| Mechanical | |
| Installation | DIN Rail |
| Enclosure Material | Aluminum alloy metal |
| Dimension | 110 (D) x 154(H) x 47.5mm (W) |
| Ingress Protection | IP40 |
| Weight | ~640g without package |
| Environmental | |
| Operating Temperature & Humidity | -25°C~70°C , 5%~95% Non-Condensing |
| Storage Temperature | -40°C~85°C |
| MTBF | 300,000 hours |
| Warranty | 5 Years |
| Standard | |
| CE-EMC | EN 55032:2015/A11:2020/A1:2020, EN 55035:2017/A11:2020, EN IEC 61000-3-2:2019/A1:2021/A2:2024, EN 61000-3-3:2013/A1:2019/A2:2021, EN 61000-4-2:2009, EN IEC 61000-4-3:2020, EN 61000-4-4:2012, EN 61000-4-5:2014/A1:2017, EN IEC 61000-4-6:2023, EN 61000-4-8:2010, EN IEC 61000-4-11:2020 |
| CE-LVD | EN IEC 62368-1:2024+A11:2024 |
| RoHS | IEC 62321-5:2013& IEC 62321-4:2013+A1:2017& IEC 62321-7-2:2017& IEC 62321-6:2015& IEC 62321-8:2017 &IEC 62321-3-1:2013 & IEC 62321-7-1:2015 |
| Model Name | Description |
| IDP208G-8GP | Din-rail 8-port Giga PoE+ Switch |
| Package List | |
| 1 x Product Unit | |
| 1 x 6-pin Removable Terminal Connector | |
| 1 x Attached Din Clip | |
| 1 x Quick Installation Guide |
Optional Accessory
| Model Name | Description |
| SDR-480P-48 | Din Rail Power Supply INPUT:90-264VAC, 120-370VDC, OUTPUT: 48VDC/10A, -25 ~ +70℃ |
| NDR 480-48 | Din Rail Power Supply INPUT:90-264VAC, 120-370VDC, OUTPUT: 48VDC/10A, -20 ~ +70℃ |
