| Technology |
|
| Standard |
IEEE 802.3 10Base-T Ethernet |
| IEEE 802.3u 100Base-TX Fast Ethernet |
| IEEE 802.3u 100Base-FX Fast Ethernet Fiber |
| IEEE 802.3ab 1000Base-T Gigabit Ethernet Copper |
| IEEE 802.3z Gigabit Ethernet Fiber |
| IEEE 802.3x Flow Control and back-pressure |
| IEEE 802.1AB Link Layer Discovery Protocol (LLDP) |
| IEEE 802.1p Class of Service (CoS) |
| IEEE 802.1Q VLAN |
| IEEE 802.1D-2004 Rapid Spanning Tree Protocol (RSTP) |
| IEEE 802.3ad Link Aggregation Control Protocol (LACP) |
| IEEE 802.1X Port based Network Access Protocol |
| Performance |
|
| Switch Technology |
Store and Forward Technology with Non-Blocking Switch Fabric |
| Number of MAC Address |
8K |
| Packet Buffer Memory |
4.1M bits |
| Transfer performance |
10Base-T: 14,880pps, 100Base-TX/FX: 148,800pps, 1000Base-TX/FX: 1,488,100pps |
| Jumbo Packet |
10KBytes |
| Interface |
|
| Ethernet Port |

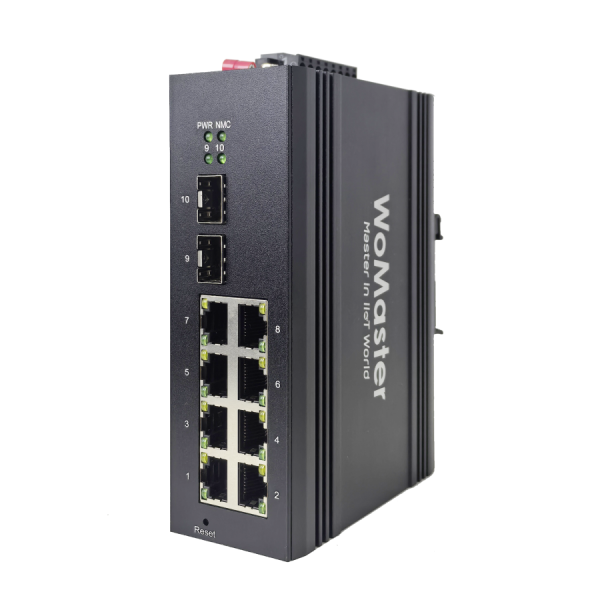

8 x 10/100/1000Base-T RJ45 PoE (Port 1 / 2 : PoE BT)
2 slots for 1G/2.5G SFP optical ports, by web configuration
|
| System LED |
1 x Power, 1 x SYS |
| Ethernet Port LED |
1000M: Link (Green On, Amber On), Activity (Green Blinking)
100M: Link (Green On, Amber Off), Activity (Green Blinking) |
| Reset |
Default Settings Reset(over 7 Seconds) |
| Power Input |
8-Pin Removable Terminal Block Connector:
3 Pins for Redundant Power
3 pins for Console
2 Pins for Alarm relay output
|
| Power Requirement |
|
| Input Voltage |
48VDC (48~58VDC) |
| Reverse Polarity Protect |
Yes |
| Power Consumption |
<250W |
| PoE |
|
| Power forwarding mode |
802.3at Alternative A |
| PoE Power Budget |
Max PoE Power Budget: 240W |
| PoE Standard |
IEEE 802.3at PoE+, IEEE 802.3af PoE, IEEE 802.3bt (Port 1-2) |
| Management |
PoE Status, PoE Scheduling |
| Software |
|
| IP Routing |
L2+ network management functions.
IPV4 static routes/default routes with up to 32 entries
ARP protocol with a maximum of 1024 entries |
| VLAN |
port-based VLANs (4K),IEEE802.1q VLANs, protocol-based VLANs
Access, Trunk, and Hybrid port configurations. |
| Port Aggregation |
static aggregation and dynamic aggregation (LACP)
up to 8 aggregation groups, each aggregation group supports up to 8 ports |
| Redundancy |
STP/RSTP/MSTP spanning tree protocols
ITU-T G.8032 v1/v2 Ethernet Ring Protection Switching (ERPSv2) (single-ring, multi-ring, intersecting ring and tangent ring configurations), ring self-healing time less than 20ms |
| IGMP, Mirroring |
IGMP Snooping v1/v2/v3 and up to 1024 multicast groups.
bi-directional traffic mirroring on basic ports |
| DHCP |
DHCP Server, DHCP Client, DHCP Snooping v1/v2/v3 |
| QoS |
port-based, 802.1P and DSCP/ToS prioritization, and supports 8 output queues per port. Four priority scheduling modes: Equ, SP, WRR, SP+WRR.
Priority Mark/Remark, Flow-based rate limiting, packet filtering, redirection |
| ACL |
L2 to L4 packet filtering function and provides ACLs defined based on source MAC address, destination MAC address, source IP address, destination IP address, IP protocol type, TCP/UDP port, TCP/UDP port range, VLAN, etc. Port-based and VLAN-based ACL issuance |
| Security |
Hierarchical management and password protection, Port-based IEEE802.1X authentication
AAA & RADIUS with TACACS+ authentication, MAC address learning number limit, MAC address blacklist, address binding, SSH 2.0 encrypted channel for user login, Port isolation, ARP message speed limit function, IP source address protection, ARP intrusion detection, Anti-DoS attacks, Port broadcast message suppression, Host data backup/restore mechanism, IP+MAC+VLAN+Port Quad Binding |
| Management |
Web-based, CLI command line (Console, Telnet), SNMP (V1/V2c/V3), HTTP, TFTP file upload/download, RMON 1, 2, 3 and 9 groups, one key to restore factory settings
NTP clock and local clock, local logs and system logs (SYSLOG), Ping detection, cable status checking, instant CPU utilization status, Link Layer Discovery Protocol LLDP, NMS (LLDP+SNMP) |
| Mechanical |
|
| Installation |
DIN-Rail |
| Enclosure Material |
Steel Metal |
| Dimension |
104 x 143 x 48mm (HxDxW)
|
| Ingress Protection |
IP40 |
| Weight |
~0.55Kg with no package |
| Environmental |
|
| Operating Temperature & Humidity |
-25°C~70°C,5% to 95% RH non-condensing |
| Storage Temperature |
-40°C~85°C,5% to 95% RH non-condensing |
| MTBF |
100,000 hours |
| Warranty |
3 Years |
| Standard |
|
Surge protection of Power
|
IEC 61000-4-5 Level X（6KV/6KV）（8/20us）
|
|
Surge protection of Ethernet port
|
IEC 61000-4-5 Level 4（4KV/4KV）（10/700us）
|
|
Radiation
|
IEC 61000-4-3 Level 3（10V/m）
|
|
EFI
|
IEC 61000-4-4 Level 3（1V/2V）
|
|
Conduction anti-interference
|
IEC 61000-4-6 Level 3（10V/m）
|
|
Power supply frequency magnetic field immunity
|
IEC 61000-4-8 Level 4（30A/m）
|
|
Voltage dips（DIP）
|
IEC 61000-4-11 Level 3（10V）
|
|
Anti-static interference（ESD）
|
IEC 61000-4-2 Level 4（8KV/15KV）
|
|
Free fall
|
0.5m
|
