SC201

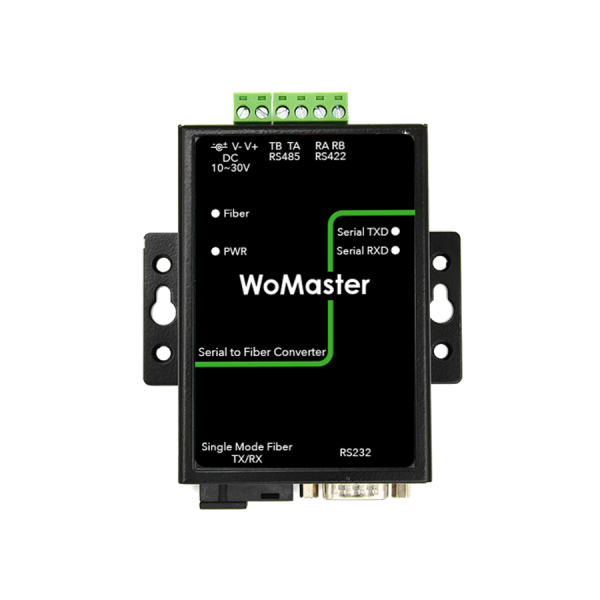

  1.  Compact RS232/422/485 Serial to Fiber Converter

The SC201 is a converter that facilitates the connection of a remote terminal unit (RTU) with a HOST or SCADA controller by converting RS-232/485/422 signals to 100M Single Mode Fiber. It has flexible port options, allowing the user to mix and match RS-232, RS-485, or RS-422 ports, and supports 2 wires (half-duplex) RS-485 and 4 wires (full-duplex) RS-422 mode. The transmission rates for RS-232 can reach up to 115.2Kbps, and for RS-485/422 can reach up to 460Kbps, making it a high-speed converter. The SC201 supports mixed and matched ports with different electronic standards and apply single core/ single mode fiber with WDM technology to reduce the fiber transmission cost.
Related Downloads Inquiry cart

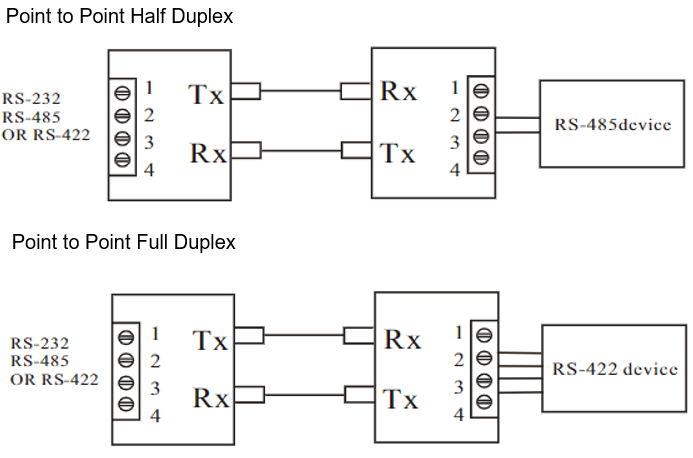

・Supports point to point connection
・Supports RS-232,RS-422,RS-485 protocol
・Simultaneous RS-232, RS-485/422 Communications
・Auto Adaptive Serial parameters without configuration
・Serial Baud Rate up to 115200bps
・Seamless Zero delay
・Single-Mode Fiber, Single-Core Transmission
・Interface: Simplex SC, Applies WDM Technology / RS232 DB9 /RS485, RS422 Terminal Connector

Interface
Serial Port RS232/RS422/RS485 Line Driver support 8/15KV ESD
Interface Connector:
    RS232: DB9 Male, RxD, TxD, CTS, RTS, Ground
    RS422/485: Terminal Connector
Serial Configuration: Auto adaptive without configuration
    Baud Rate: 115200bps
    Parity Check: None, Odd, Even, Mark, Space
    Data Size: 5~9 bit
    Flow Control : None
Transmission Latency: Seamless Zero Delay
Optical Fiber Port Fiber Cable: Single Mode Fiber Cable, one fiber core transmission
Interface: Simples SC with WDM Technology
SC201-S-SC-WDM13-20: TX 1310nm, RX 1550nm, 20KM distance, SC Simplex Connector
SC201-S-SC-WDM15-20: TX 1550nm, RX 1310nm, 20KM distance, SC Simplex Connector
SC201-S-SC-WDM13-40: TX 1310nm, RX 1550nm, 40KM distance, SC Simplex Connector
SC201-S-SC-WDM15-40: TX 1550nm, RX 1310nm, 40KM distance, SC Simplex Connector
Transceiver Parameters
Model (SC201-S-SC-) TX (dBm)/ Wavelength (nm) RX (dBm)/Wavelength(nm) Link Budget (dB) / KM
WDM13-20 -14~ -3 / 1310 -31 ~-3 / 1550 17 / 20KM
WDM15-20 -14~ -3 / 1550 -31 ~ -3 / 1310 17 / 20KM
WDM13-40 -8~ -3 / 1310 -34 ~-3 / 1550 26 / 40KM
WDM15-40 -8~ -3 / 1550 -34~ -3 / 1310 26 / 40KM
LED Indication System: Power, Fiber Link
Serial: TX, RX
Power input DC Jack: 12V AC/DC Power Adapter Input , Terminal Connector for open wire power input
Power Requirement
Input Voltage DC 12V : AC/DC Power Adapter output 12V
Terminal Connector: 10~30V Input with polarity reverse protection
Mechanical
Installation Wall Mounting or DIN Rail (with DIN Clip)
Enclosure Material Steel Metal
Dimension 109.3 mm (H) x 91mm (W) x 26mm (D)  with wall mount ear
Ingress Protection IP40
Weight 0.3kg without package
Environmental
Operating Temperature & Humidity -40°C~70°C , 0%~95% Non-Condensing
Storage Temperature -40°C~80°C
Warranty 1 years
Model Name Description
SC201-S-SC-WDM13-20 Industrial Serial to Fiber Media Converter, single-mode, 20km/ TX1310nm, RX1550nm, SC
SC201-S-SC-WDM15-20 Industrial Serial to Fiber Media Converter, single-mode, 20km/ TX1550nm, RX 1310nm, SC
SC201-S-SC-WDM13-40 Industrial Serial to Fiber Media Converter, single-mode, 40km/ TX1310nm, RX1550nm, SC
SC201-S-SC-WDM15-40 Industrial Serial to Fiber Media Converter, single-mode, 40km/ TX1550nm, RX1310nm, SC
  Package List
1 x Product Unit
1 x AC to DC Power Adapter
1 x DIN Rail Clip Set with screws
1 x Quick Installation Guide
