| 4G LTE / IoT Communication
•LTE NB, Cat.M1
•B1,B3,B4,B5,B8,B12,B13,B18,B19,B20,B25,B26,B27,B28,B66,B71,B85
•E-SIM / Nano SIM Socket ( Default E-SIM)
DALI, 1-10V Dimming Control •1-10V , DALI Dimming protocol
•1-10V Output Pull-High Resistor Adjustable
•Auto Switch Dimmer Main Power with Relay Control
Energy Measuring & Monitoring •Voltage RMS, Current RMS
•Voltage Active, Current Active
Reactive Power, Apparent PowerWide Range Voltage – AC100~277V •Build-In AC Power for System Operating
•1KW Relay Om/Off Driven Capability (AC 220V)
Communication & Control •MQTT /MQTTs Cloud Protocol
•Https FOTA
•Status Timing Publish
•Power On Auto Full Dimming Output
•NB Disconnect with schedule Dimming Control *
|
Multi-Level Security
•User and Administrator multi-level Authentication
•AES 128, MD5 Data Encryption
Full-Time Protection •IP 66 Water-Proof & Dust-Proof
•ANSI C136.41 Vibration
•ASTM B117 Salt-Fog Resistance
•-40~65°C Operating Temperature / 10~90 % Humidity
•Anti U/V, Anti Corrosion for Acid-Rain
Windows© Configuration Tools •Friendly Interface with Auto-Detection of Connected Model
•Configuration through micro-USB Interface
•Production with pre-defined profile for field easy installation
|
SL102

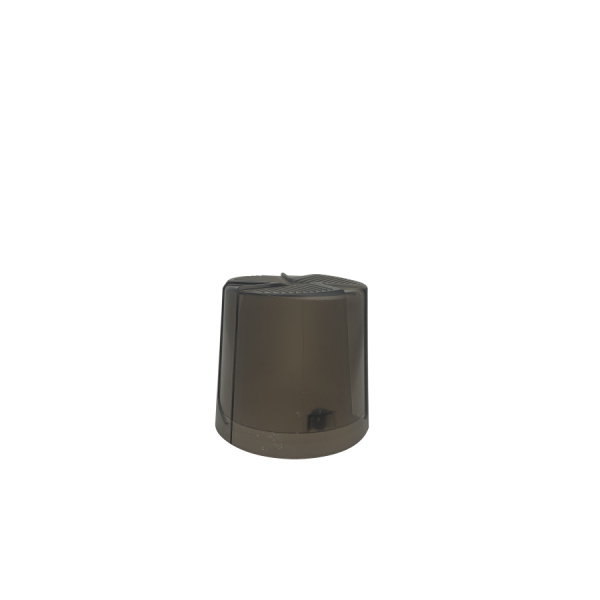

The SL102 is a LED dimmer controller for the smart lighting control application with LTE CAT M1 and NBIoT v2 IoT networks. The controller communicates with the Cloud server by MQTT and supports 2 types of LED dimmer control 1-10V or DALI protocol. The configuration can be easily done by Cloud OTA platform or local Windows Utility by Micro-USB connection. The SL102 controller is compact size for street light installation with AC power supply and can withstand -40˚C~65˚C outdoor environments by IP66 enclosure.
| Technology | |
| Standard | 3GPP Release 14 NB-IoT |
| Cellular Properties | |
| Data Throughput | Cat. M1: 300Kbps (DL)/ 1.1Mbps(UL) Cat. NB1: 27Kbps(DL)/ 63Kbps(UL) Cat. NB2: 124Kbps(DL)/ 158Kbps(UL) |
| Band Information | Cat-M1: B1,B3,B4,B5,B8,B12,B13,B18,B19,B20,B25,B26,B27,----,B66,B85 Cat-NB1/2:B1,B3,B4,B5,B8,B12,B13,B18,B19,B20,B25,B26, ---,B28,B66,B71 Category=Cat. |
| Radio RX Sensitivity | Cat.M1: -103dBm (Typ.) / -99.2dBm (Min.) Cat.NB2: -113dBm (Typ.)/ -108.2dBm (Min.) |
| Radio TX Power | Cat.M1: Class 5 (+20dBm ±2dB) for all supported LTE Cat M1 bands Cat.NB2: Class 5 (+20dBm ±2dB) for all supported LTE Cat NB1/2 bands |
| System Management | |
| System Management | 1 x Micro USB 2.0 internal port for System Configuration |
| Software Utility | Windows© Based Utility for the factory configuration with secure login function |
| System Security | Encrypted system parameters |
| Interface (Internal) | |
| SIM Socket | 1x Nano-SIM Socket (Default) / Chip SIM (Note2) |
| USB | 1x Micro USB for configuration & firmware upgrade (Engineer Maintenance ) |
| Antenna | 1x 2dBi internal Spring Antenna |
| Power Rating & Management | |
| Power Input | Standard 7-Pin NEMA Socket Power Input Rating: AC110V/ 220V (AC 86V~285V) |
| Power Consumption | Operating: 3.84W @AC220V (System Publish data, Dimmer Power Relay On ) Sleep: 1W @AC220V (Sleep Mode) |
| LED Dimmer Loading | 1KW relay output driven capability for LED Dimmer |
| Energy Management | V(rms), I (rms), Active Power (w), Reactive Power (w), Apparent Power (w), Pre-defined Frequency |
| LED Dimming Control | |
| SL102-10V | Output 1-10V Voltage for LED Dimmer control with adjustable O.C. output. |
| SL102-DALI Note-1 | 1-8V DALI Dimmer Control Protocol |
| Cloud Communication | |
| Data Communication | Communicate with IoT /Cloud server by MQTT protocol, publish system status and subscribe update control message |
| Scheduling Reporting | Pre-defined IoT/Cloud Server connection with authentication |
| Cloud Security | AES-128 |
| Mechanical / Enclosure | |
| Installation | ANSI C136.41, ANSI C136.10 Dimming Receptacle |
| Dimension (mm) | Ø 96 x 90 (H) |
| Protection Degree | IP-66 |
| Pollution Degree | 2 |
| Material | PC, U/V resistant, UL94V0 plastic |
| Weight | 300g |
| Environmental | |
| Operating | -40°C~70°C, 0% ~ 90%, Non-Condensing |
| Storage | -40°C~80°C, 0% ~ 90%, Non-Condensing |
| Reliability & Warranty | |
| MTBF | > 200,000 Hours Operating |
| Warranty | 1 Year |
| Regular Standard | |
| Radio Equipment Directive (Note-3) | RED 2014/53/EU EMC: EN 301489-1 V2.2.3 (2019-11)/ EN 301489-3 V2.1.1 (2019-03) Radio: EN 300 220-1 v3.1.1 (2017-02)/ EN 300 220-2 v3.2.1 (2018-06) Health: EN 50663:2017 / EN 62479:2010 Safety: EN62368-1: 2014+ A11:2017 |
| EMC (Note-3) | Compliance with EN 55032:2015/A11:2020, EN 55035:2017 IEC 61000-4-2 ESD IEC 61000-4-3 RS IEC 61000-4-4 EFT IEC 61000-4-5 Surge IEC 61000-4-6 CS IEC 61000-4-8 Pulse Magnetic Field |
| Model | Description |
| SL102-10V | Smart Lighting Controller, LTE Cat M1/NB, 0-10VDC, AC 86~285V, NEMA Socket |
| SL102-DALI | Smart Lighting Controller, LTE Cat M1/NB, DALI, AC 86~285V, NEMA Socket |
